A USB-C Port Isn't A Guarantee Of High Speeds: Here's Why [2025]

USB-C is widely celebrated as a universal connector that simplifies connections across a range of devices. However, despite its ubiquity, a USB-C port does not inherently promise high-speed data transfer. It’s a scenario many users encounter: plugging in a device expecting lightning-fast speeds, only to be met with sluggish performance. Why does this happen? Let’s untangle the complexities of USB-C and explore why not all ports are created equal.

TL; DR

Not all USB-C ports support the same data speeds, with variations due to different underlying specifications.
USB-C encompasses multiple protocols, including USB 2.0, USB 3.1, USB 3.2, Thunderbolt 3, and USB4, each offering different capabilities.
Cable quality and compatibility significantly impact performance; a high-quality cable is essential for maximum speed.
Devices must support the same protocol for optimal speeds; mismatched specifications can throttle performance.
Future trends point towards more unified standards, but understanding current nuances is crucial for leveraging USB-C effectively.

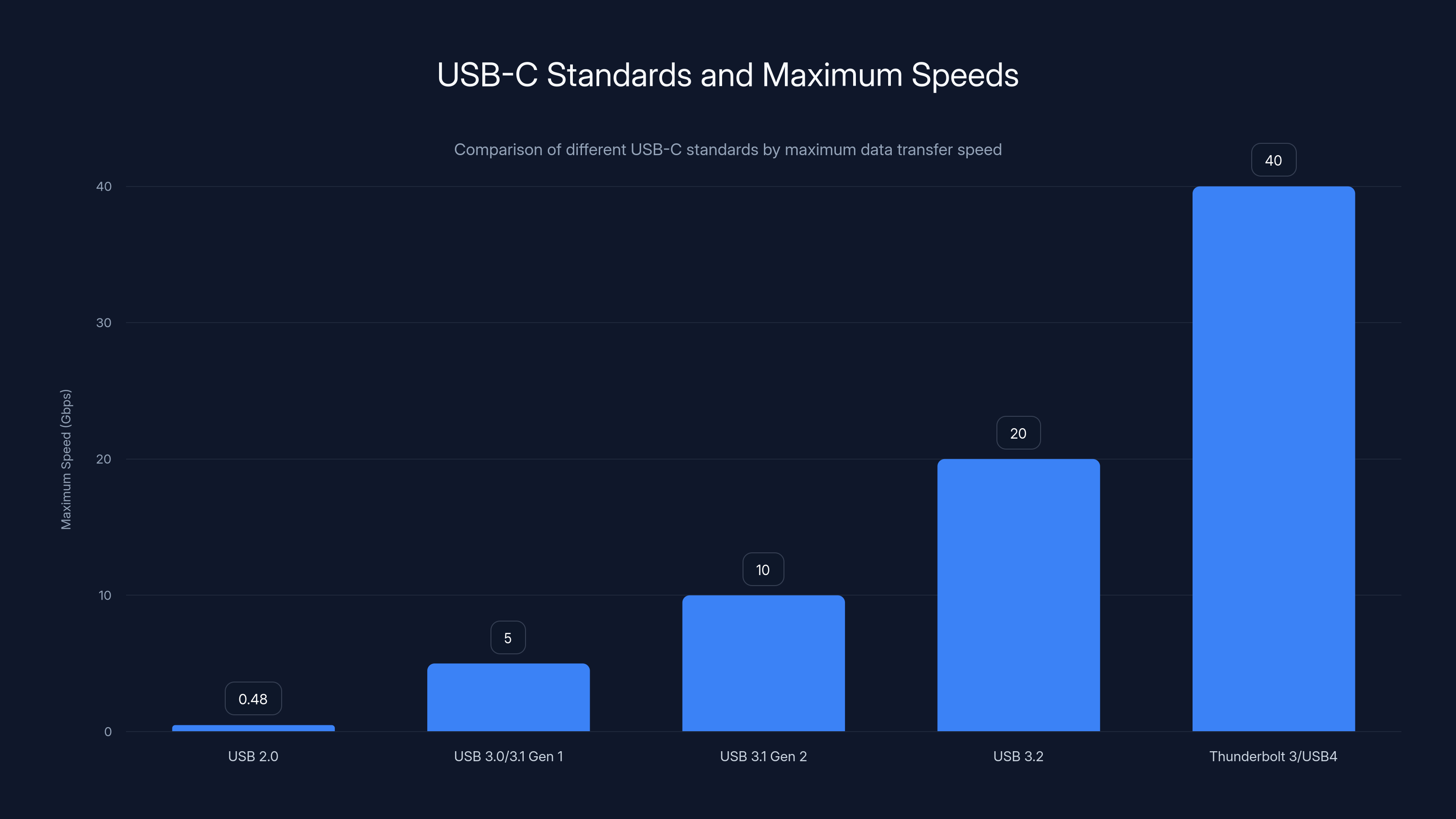

USB-C standards vary significantly in maximum data transfer speeds, from 0.48 Gbps for USB 2.0 to 40 Gbps for Thunderbolt 3 and USB4.

The Rise of USB-C

USB-C, introduced around 2014, was envisioned as a single connector that could handle various tasks—data transfer, power delivery, and video output. Its reversible design and high power capacity made it an instant hit. Yet, the promise of simplicity quickly morphed into a complex ecosystem as manufacturers started implementing it with different specifications.

USB-C Specifications Explained

The term USB-C refers to the physical connector, not the data transfer standard. Here’s where the confusion often arises. USB-C ports can support a range of standards, each with different capabilities:

USB 2.0: Offers a maximum speed of 480 Mbps. It’s one of the earliest USB standards and is still prevalent in many budget devices.
USB 3.0/3.1 Gen 1: Capable of speeds up to 5 Gbps, marking a significant improvement over USB 2.0.
USB 3.1 Gen 2: Doubles the speed of Gen 1, offering up to 10 Gbps.
USB 3.2: Raises the stakes to 20 Gbps, but requires specific cables to achieve these speeds.
Thunderbolt 3 and USB4: Capable of up to 40 Gbps, these are the highest-performing standards currently available, often found in premium devices.

The problem is that a USB-C port can support any one of these standards, and the only way to know is through manufacturer documentation or device labeling.

Practical Implementation and Best Practices

For users, the best practice is to always verify the specifications of the USB-C ports and cables. Here are some steps to ensure you're getting the speeds you expect:

Check Device Specifications: Before purchase, review the technical specifications of the device to understand which USB-C standard it supports.
Inspect Cable Quality: Use high-quality cables that are compliant with the necessary standards. Cheap cables often lack the necessary wiring to support high-speed transfer.
Match Device and Cable Standards: Even if your device supports USB4, using a USB 2.0 cable will bottleneck performance.

Common Pitfalls and Solutions

One common pitfall is assuming all USB-C ports are equal. Users often find themselves frustrated when their high-speed devices don’t perform as expected. Here are some solutions:

Mismatched Standards: Ensure both the device and cable support the same USB standard. Mismatched standards default to the lowest speed.
Cable Quality: Invest in certified cables. Look for cables labeled with their supported standards.
Device Compatibility: Check if the connected devices are compatible with the same USB-C standard. A Thunderbolt 3 device will not achieve its full potential through a USB 3.0 port.

Future Trends and Recommendations

The future of USB-C looks promising with ongoing efforts to unify standards. USB4, which incorporates Thunderbolt 3 technology, aims to streamline the USB ecosystem by offering higher speeds and improved compatibility across devices. However, transition periods often involve mixed standards, so understanding these intricacies remains important.

In terms of recommendations, users should:

Stay Informed: Keep up with the latest USB standards to make informed purchasing decisions.
Invest in Quality: Purchase devices and cables from reputable manufacturers to ensure compliance with the latest standards.
Embrace Adaptability: Opt for devices that offer flexibility, supporting multiple USB-C standards to future-proof your setup.

The Rise of USB-C - visual representation

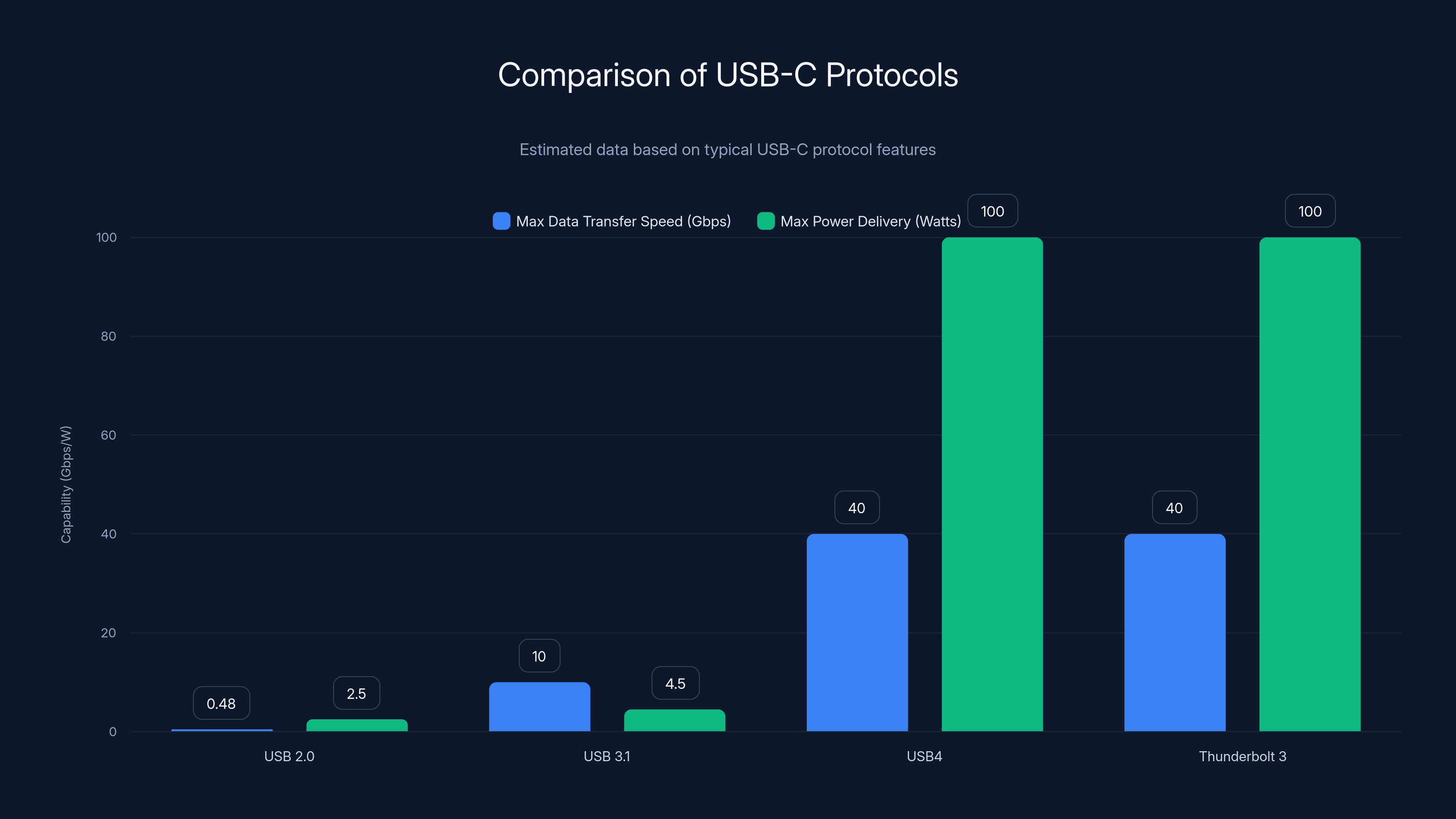

Thunderbolt 3 and USB4 offer the highest data transfer speeds and power delivery capabilities among USB-C protocols. Estimated data.

Deep Dive: Technical Insights

Understanding USB Power Delivery

USB-C isn’t just about data—it’s also a powerhouse for delivering electricity. USB Power Delivery (PD) is a specification that allows devices to negotiate power levels, providing up to 100 watts of power. This feature enables laptops, monitors, and other high-power devices to be charged through a single cable.

Real-World Use Cases

Consider a scenario where you’re transferring large video files from a camera to a laptop equipped with USB-C. Using a USB 3.2 cable will ensure fast transfer speeds, but if the device only supports USB 2.0, you’ll experience delays. Alternatively, connecting a high-power device like a 4K monitor requires both video and power capabilities, achievable through a Thunderbolt 3 or USB4 port.

Deep Dive: Technical Insights - visual representation

Common Misconceptions

One of the biggest misconceptions is that USB-C automatically implies high-speed data transfer. This isn’t always the case, as the port is merely the physical connector. The underlying protocol determines the actual data capabilities.

Practical Tips for Avoiding Bottlenecks

Label Your Cables: Mark your cables with their supported standards for easy identification.
Use Hubs Wisely: Ensure USB-C hubs support the necessary standards to avoid bottlenecks.
Firmware Updates: Keep devices updated with the latest firmware to support the highest speeds available.

Common Misconceptions - visual representation

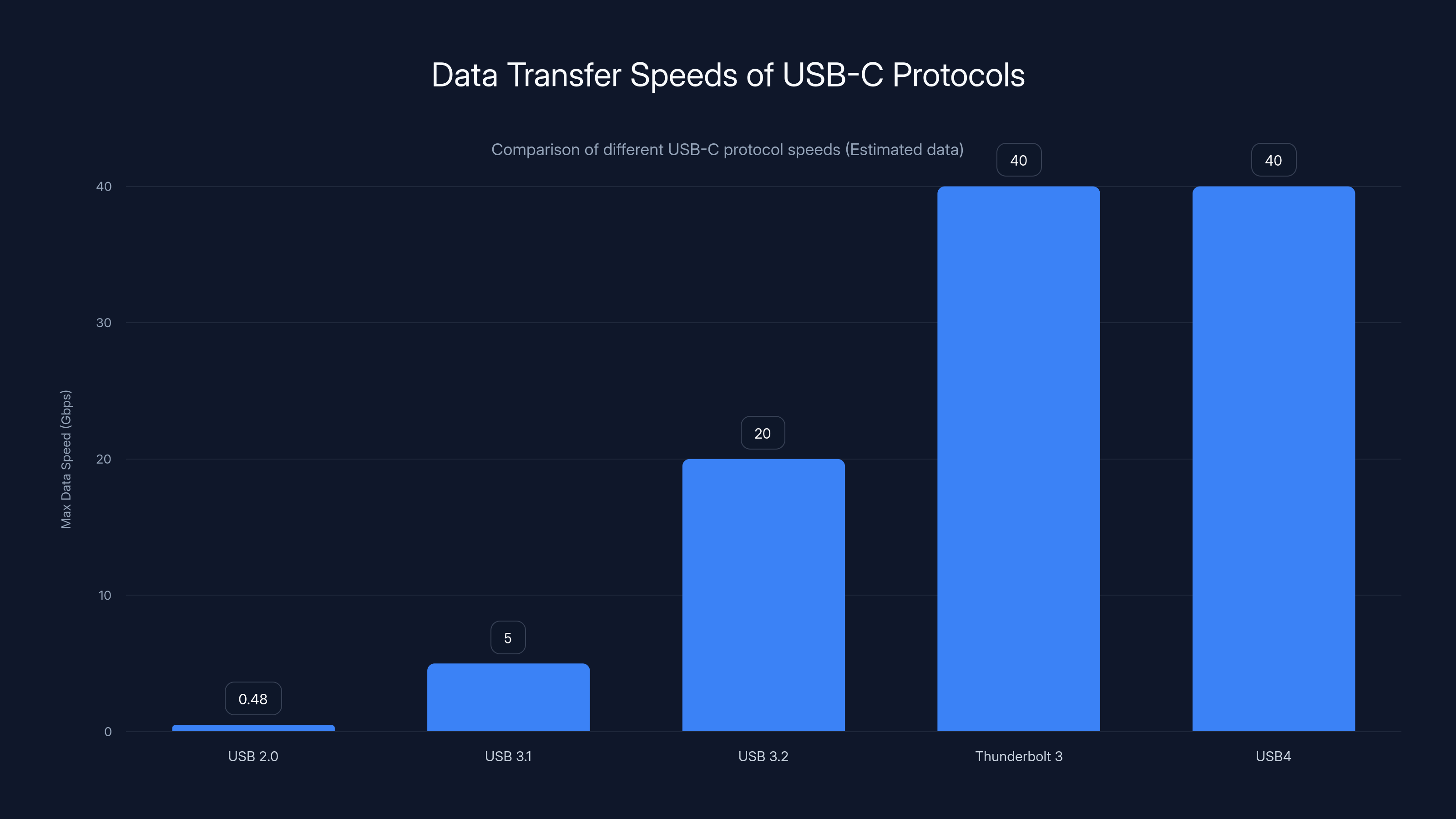

USB-C protocols vary significantly in data transfer speeds, with USB4 and Thunderbolt 3 offering the highest speeds at 40 Gbps. Estimated data.

Conclusion: Navigating the USB-C Ecosystem

Navigating the USB-C ecosystem requires an understanding of its intricacies. While the promise of a universal connector is enticing, the reality is more complex. By comprehending the differences between various USB standards and ensuring compatibility, users can maximize the potential of their devices.

As USB-C continues to evolve, staying informed and investing in quality products will ensure that you’re equipped to handle the demands of modern devices without unnecessary slowdowns.

Conclusion: Navigating the USB-C Ecosystem - visual representation

FAQ

What is USB-C?

USB-C is a physical connector standard that supports data transfer, power delivery, and video output across a range of devices.

How does USB-C differ from other USB standards?

Unlike previous USB standards, USB-C is reversible, offers higher power delivery, and supports multiple protocols like USB4 and Thunderbolt 3.

Why are some USB-C ports slower than others?

The speed depends on the underlying protocol (e.g., USB 2.0, USB 3.1) supported by the port, not the USB-C connector itself.

What should I look for when buying USB-C cables?

Ensure cables are certified for the standards you need, and ideally, purchase from reputable manufacturers to guarantee performance.

Can USB-C charge my laptop?

Yes, USB-C can charge laptops if both the device and cable support USB Power Delivery, providing up to 100 watts of power.

How do I know which USB-C standard my device supports?

Refer to the device's technical specifications or manufacturer documentation to identify the supported USB-C standard.

Are USB-C and Thunderbolt 3 interchangeable?

While they use the same connector, Thunderbolt 3 supports faster data transfer and additional features, so ensure compatibility for maximum performance.
