IBM unveils new record-breaking chip with 100 billion transistors in less than 1 nanometer footprint — new Nano Stack design is like "a 100-storey skyscraper" packed with highly efficient processing power

Tiny IBM chip packs more transistors than entire data centres

When you purchase through links on our site, we may earn an affiliate commission. Here’s how it works.

IBM pushes transistor density below the long-feared one-nanometer barrier

Nano Stack abandons flat chip layouts in favour of vertical transistor stacking

The prototype delivered 50% more performance during IBM laboratory testing phases

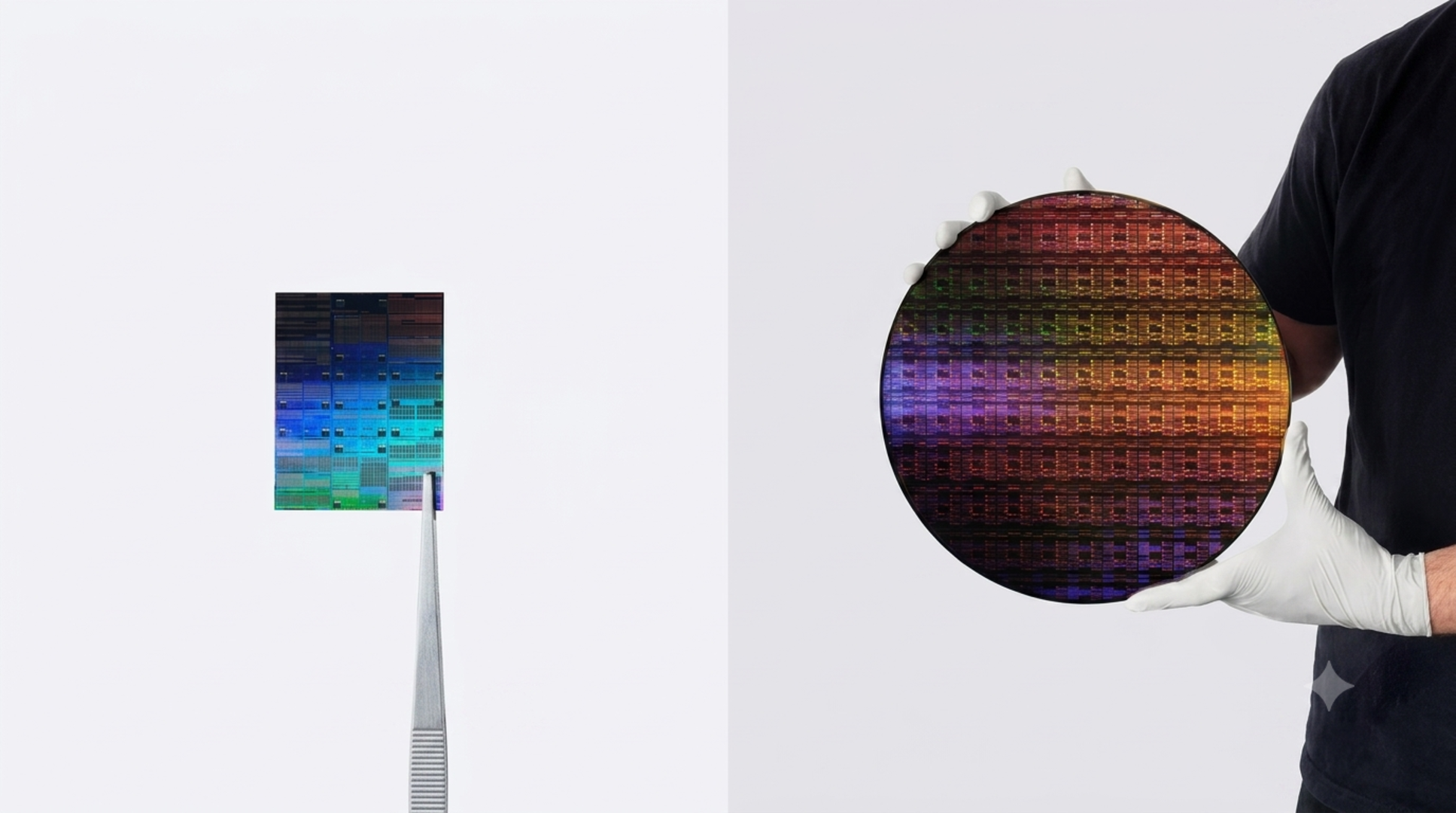

IBM has unveiled what it describes as the world's first sub-1 nm chip technology, carrying nearly 100 billion transistors on a fingernail-sized surface.

The breakthrough revolves around a new 3D Nano Stack architecture that moves transistor scaling into the 0.7 nm or 7 angstrom era.

For context, today's most advanced commercial chips typically sit around the 2nm mark, making this a substantial leap in density.

The semiconductor industry has spent decades squeezing more transistors onto increasingly smaller pieces of silicon to improve computing performance.

That process has become progressively harder as transistor dimensions approach the scale of only a few atoms across modern processors.

Silicon-based qubits have a clear advantage in race to million-qubit quantum computer

This device increases computer chip processing speed by 1000 times — without generating extra heat

Why IMEC’s new 6G chip breakthrough is exactly what Nvidia’s Jensen Huang is looking for right now

IBM's approach avoids further horizontal compression by stacking transistor layers vertically through a three-dimensional nanosheet architecture instead.

The design packs nearly twice the transistor density of IBM's 2 nm chip technology introduced back in 2021.

According to the company, the architecture also delivers approximately 40% greater SRAM scaling to support increasingly demanding AI workloads.

This vertical method allows engineers to separate n-type and p-type transistors into distinct layers, which, according to IBM, permits independent optimization of materials for each.

, compared it with building a big block of flats rather than houses in a city.

Huawei unveils new chip architecture, which it hopes can help it cut the gap on Nvidia and TSMC

Chinese scientists aim to save Moore’s Law by mass-growing 2D materials that 'outclass silicon'

Key partner to Nvidia, ASML and TSMC brings next-gen RAM and NAND replacements even closer

"IBM's Nano Stack is like proposing a 100-storey skyscraper," said Professor Alan Woodward, a computer scientist at Surrey University.

Using this analogy, IBM’s closest competitors, like Intel and Samsung, are somewhere around a 30 to 50-storey building, a far cry from IBM.

In testing, the company reported a 50% performance improvement and 70% greater energy efficiency compared with its existing 2nm chips, alongside a 40% gain in on-chip memory scaling.

Despite the quoted performance improvements, the technology remains years from commercial use, with IBM estimating production could begin within five years at the earliest.

"With our new Nano Stack architecture, we're not just making smaller transistors, we're reinventing how chips are built to deliver dramatically more power and energy efficiency," said Jay Gambetta, Director of IBM Research and IBM Fellow.

Vertical stacking introduces complications mostly around heat dissipation, since transistors generate heat that becomes harder to manage when layered closely together.

This same tight spacing also raises the stakes for wafer alignment, since layers must be bonded with extreme precision to avoid malfunction.

Researchers acknowledge that when gaps between layers grow too thin, transistors can fail to switch off correctly, undermining the very density gains Nano Stack is meant to deliver.

These engineering trade-offs are symptoms of a deeper problem facing the entire chip industry.

For decades, manufacturers have relied on Moore's Law, the pattern of transistor counts doubling roughly every two years.

But that pace has grown harder to sustain as designs approach the physical limits of individual atoms.

Whether Nano Stack genuinely extends that trajectory by another decade, as IBM projects, depends on whether these unresolved manufacturing challenges can be solved at scale.

It is partly for this reason that IBM has drawn in partners including ASML, Lam Research, and Tokyo Electron, signalling an industry-wide effort behind this push toward angstrom-level scaling.

Even so, similar bold claims accompanied IBM's 2nm chip unveiling in 2021, but turning lab success into mass production historically takes longer than initial announcements.
