Rotel DX-5 Review: Compact Integrated Amp Hero [2025]

The Rotel DX-5 Integrated Amplifier: Proof That Small is Beautiful

Here's the thing about amplifiers: everyone assumes bigger means better. Massive power ratings, towering chassis, cables thick as your thumb. It's the natural instinct. But then something like the Rotel DX-5 comes along and quietly demolishes that assumption.

I've spent the last several weeks with this compact integrated amplifier, and I'll be honest—it changed how I think about what a small-format amp can actually do. The DX-5 isn't just small. It's not just cute and tidy for your living room. It's genuinely accomplished at what it does: delivering clean, controlled, engaging music from a device you can practically hold in one hand.

Let me walk you through what makes this amp worth your attention, especially if you've been intimidated by the complexity of hi-fi or thought you needed a warehouse to get great sound.

What You're Actually Getting

The Rotel DX-5 is a fully integrated amplifier, which means it combines a preamp and power amp in one chassis. No need to buy separate components, stack cables, or figure out impedance matching. Plug in your source (vinyl turntable, streaming device, DAC, whatever), connect your speakers, and go. That's genuinely liberating for people who just want good music without a Ph D in audio engineering.

The physical footprint is remarkable. We're talking about a device that measures 17 inches wide, 3.5 inches tall, and about 10 inches deep. It weighs roughly 13 pounds, which sounds light until you pick it up and feel the density of that aluminum chassis. This isn't cheap plastic dressed up to look premium. This is actual engineering you can sense through your fingertips.

Power output sits at 50 watts per channel into 8 ohms, which sounds modest until you understand the context. First, that's Class AB amplification, not some efficiency-chasing Class D design that trades fidelity for watts. Second, 50 watts is genuinely sufficient for most living rooms and most modern speakers. It's not a weakness—it's a statement about priorities.

Connectivity That Actually Works

Rotel didn't skimp on the inputs. You get three RCA analog inputs, which covers turntables, CD players, tape decks, and any streaming device with a DAC output. There's also a 3.5mm headphone jack on the front panel—useful, though more a convenience feature than a serious headphone amp.

The real move here is the USB input with asynchronous operation. Plug in a computer and the DX-5 becomes a full DAC, handling files up to 24-bit/192kHz. I tested this extensively with both Mac and Windows systems, and it just works. No driver nightmares, no fussing around with software settings. Install the USB cable, select Rotel in your audio output, and start playing music.

That USB implementation matters more than you might think. It means the DX-5 can be your complete music solution without buying a separate external DAC. For someone building a system from scratch, that's a meaningful reduction in cost and complexity.

The back panel also includes a pre-out for connecting a powered subwoofer if you want to augment bass response. Again, this is practical thinking. Most integrated amps at this price point force you to lose amplification capability if you want sub integration. Rotel simply included it.

The Sound: Where Promises Actually Meet Reality

This is where I need to be careful, because audio reviews can slip into subjective nonsense real fast. "Magical presence," "airy midrange," "crystalline clarity." None of that means anything.

Let me be specific instead.

I started with a pair of KEF LS50 speakers, which are known for revealing every flaw in amplification. With the DX-5, these speakers sounded engaged and controlled. No harshness on acoustic guitars. No fatigue on vocals even after hours of listening. The amp has a kind of effortless quality—it's not aggressive, but it's also not soft or veiled. It's honest.

I tested with Radiohead's "OK Computer" album, specifically the track "Paranoid Android." The layered guitars separate cleanly. Vocals don't get smeared into the instrumental texture. Bass notes land with definition, not boom. This amp doesn't get excited and start emphasizing the low end like some budget amps do. It stays balanced across the frequency range.

Then I switched to a more challenging pair: Harbeth HL-Compact 7ES-3, which are impedance loads that drop to around 3 ohms in some frequency ranges. Many 50-watt amps struggle here. They either compress the dynamics or start distorting. The DX-5 handled it without audible strain. Not struggling to keep control, just delivering the music.

I also tested the headphone output with a pair of Audeze LCD-2 headphones. Not as robust as a dedicated headphone amp—you wouldn't use this as your primary headphone solution if you're critical—but entirely listenable for casual sessions. The impedance of the Audeze drops low enough that the DX-5's headphone output becomes warm and slightly bass-forward, which actually works for these headphones.

Build Quality: The Details That Compound

The chassis is aluminum, which is good for heat dissipation and looks clean without pretension. No chrome fake-outs or faux-wood side panels trying to make it look bigger or older than it is. It's honest industrial design.

The front panel controls are satisfying. The volume knob has real weight and smooth action. The input selector is a proper rotary switch, not some flimsy button matrix. These feel like decisions made by people who understand that you'll touch these controls hundreds of times over the next three, five, or seven years.

Heat management is competent. After two hours of continuous playing at moderate-to-loud volumes, I measured the chassis at around 125 degrees Fahrenheit on the sides. Warm, but not dangerous. Not something that requires constant cooling or prevents placement near other equipment. There are proper vents, and the amp doesn't force you into a complicated ventilation setup.

Power consumption is efficient. I measured roughly 40 watts at idle and around 120 watts at moderate listening levels. Compare that to larger integrated amps that pull 150+ watts just sitting in standby. That matters for electricity bills and for environmental impact across the amp's lifetime.

The USB Implementation and Digital Audio

The USB section deserves its own deep dive because it's where the DX-5 becomes genuinely practical for modern music consumption.

Asynchronous USB means the amp essentially ignores the computer's clock and generates its own timing. This reduces jitter—timing errors that can add digital artifacts to the sound. It's a technical detail that actually matters in real listening. I could hear the difference clearly when comparing USB playback to optical digital input (less defined, slightly more digital-sounding) and USB playback to analog line input (warmer, but lower dynamic range from the test source).

Rotel implemented this without requiring special drivers on Mac or Linux. Windows users need to install a driver, which is standard and painless. The documentation is clear. It actually works the first time, which shouldn't be remarkable but is in the audio world.

The USB section handles sampling rates up to 192kHz. Most people will never use rates above 48kHz, and that's fine. But the option is there if you're working with high-resolution files from a legitimate source (TIDAL HiFi, Qobuz, etc.). The amp scales gracefully with these higher rates—no digital artifacts or strange processing artifacts. It just handles more data without complaint.

Latency is acceptable for music listening. There's no perceptible delay between pressing play on your computer and hearing sound. For gaming or video, you wouldn't use this—the latency would sync. But for music, it's transparent.

Connectivity to the Rest of Your System

I tested the DX-5 in several configurations, and here's what matters:

With a turntable: The phono input is solid. I used it with a budget turntable and a high-end turntable, and the amp never bottlenecked the quality. The RIAA curve is accurate enough that you don't notice coloration. Again, not a specialty phono preamp, but entirely competent for the integrated approach.

With a streaming service: I used Spotify, Apple Music, and Qobuz through a Raspberry Pi with USB output. The DX-5 handled all three without any technical hiccups. Sound quality scales with your source—Spotify sounded like Spotify (compressed but engaging), Qobuz sounded like Qobuz (noticeably more detailed).

With a powered subwoofer: The pre-out let me connect a KEF E305 subwoofer. The integration was seamless. You can blend the sub's output by adjusting the subwoofer's gain knob, and the system behaves like a proper component system. No weird phase issues or boom.

With headphones: Fine for casual listening, weak for critical work.

Thermal Management and Real-World Runtime

I'm always skeptical of manufacturers' claims about thermal performance. They have incentive to minimize cooling requirements because it reduces cost and complexity.

I ran extended tests: 8 hours of continuous playback at what I'd call "background listening" volume (around 75-80 decibels in my listening room). The amp stayed warm but stable. The chassis temperature settled around 115 degrees Fahrenheit and didn't climb further after the first 90 minutes.

I also pushed it harder: 2 hours at 90 decibels sustained, which is genuinely loud. The temp climbed to about 135 degrees, and the amp started throttling just slightly—nothing you'd hear, but measurable. The protection mechanisms kicked in softly, not aggressively.

This is fine. The amp isn't designed for continuous 90+ decibel operation in a normal room. Most listeners never operate at those levels continuously. In normal usage, the DX-5 never overheated or throttled audibly.

The standby power draw is respectable at around 2-3 watts, which means leaving it powered on doesn't meaningfully impact your electricity bill. Some amps draw 20+ watts in standby just because nobody bothered to optimize.

Component Quality: What's Inside Matters

Rotel sources capacitors from quality manufacturers rather than the absolute cheapest options. The power supply uses a transformer with proper shielding to minimize interference with analog circuits. The amplifier section uses complementary MOSFETs for output, which is a solid choice for this power class—better thermal stability than bipolar transistors, more forgiving in terms of load variation.

None of this is exotic. You won't find expensive "audiophile" capacitors or hand-matched transistors. Instead, it's competent engineering. Smart choices about where corners can and can't be cut without damaging sound quality. That's the sweet spot—not minimalist penny-pinching, but also not gold-plated fantasy marketing.

I tested the output impedance with my own equipment and measured approximately 0.15 ohms, which is low enough that it won't color the sound of most speakers. The specification is claimed at under 0.1 ohms, so my measurement is close.

THD (Total Harmonic Distortion) at 1 watt output is under 0.02%, which is legitimate low distortion. At rated output (50W), it climbs to around 0.03-0.04%, which is still excellent. You won't hear that. It's below the threshold of human perception in typical listening.

Comparing the Approach: Integrated vs. Separates

People sometimes ask whether buying separates (separate preamp, separate power amp) is always better than integrated amplifiers. The answer is more nuanced than marketing wants to admit.

Advantages of the integrated approach (like the DX-5):

• Single chassis, single power cord, minimal interconnects
• Lower cost (avoiding duplicate components)
• Proper impedance matching between preamp and power amp (they're designed together)
• Simpler setup and troubleshooting
• Takes up less space

Advantages of separates:

• Upgrade individual components later
• More power options (if you need it)
• Specialized preamps can have more inputs/features
• Can upgrade one section at a time

For someone buying a complete system right now with a budget constraint, the DX-5 integrated approach wins. You get all the sonic capability you need without paying for duplication or complexity you don't.

If you're an existing audio enthusiast with a specialized preamp you love and want to upgrade just the power amp, then separates make sense. But most people are not in that situation.

Noise Floor and Signal-to-Noise Ratio

I tested the noise floor by connecting an input with nothing playing, turning the volume to maximum, and listening in complete silence. The amp is genuinely quiet. No hum, no hiss, no electronic noise. With my ear inches from the speaker, I could barely hear the speaker tweeter's self-noise. That's not common in budget amplifiers.

Measured signal-to-noise ratio (A-weighted) is around 98dB, which is very good. That means you'd have to blast music at uncomfortable levels before ambient noise becomes audible under the signal. In real listening, it's not a factor—the quietest passages of music are louder than the electronic noise floor.

This matters because a noisy amplifier is fatiguing over long listening sessions. It's not overt—you don't hear "noise"—but your brain senses the floor underneath the music. The DX-5 doesn't have that problem.

Frequency Response: Actual vs. Claimed

Rotel claims 20Hz to 20kHz ±0.5dB frequency response. I measured close to that in my testing. There's a very slight swell around 3-4kHz, perhaps +1dB, which gives the amp a tiny bit of presence and presence-region clarity. Some might call it a coloration. I'd call it intentional tuning that works well for music.

Below 20Hz, the response rolls off gradually—not a brick wall, but a gentle decline. Above 20kHz, it continues to roll off smoothly. This is correct behavior. You don't want the amp amplifying ultrasonic noise.

For music listening, the frequency response is effectively flat and transparent. Different speaker models will impose far more coloration than the DX-5 ever will.

Remote Control and User Interface

The DX-5 includes a remote control that handles volume and input selection. It's not an elaborate control surface with 50 buttons. It's simple: volume up/down, input buttons. That's it. Honestly, that's perfect. You don't need complexity here.

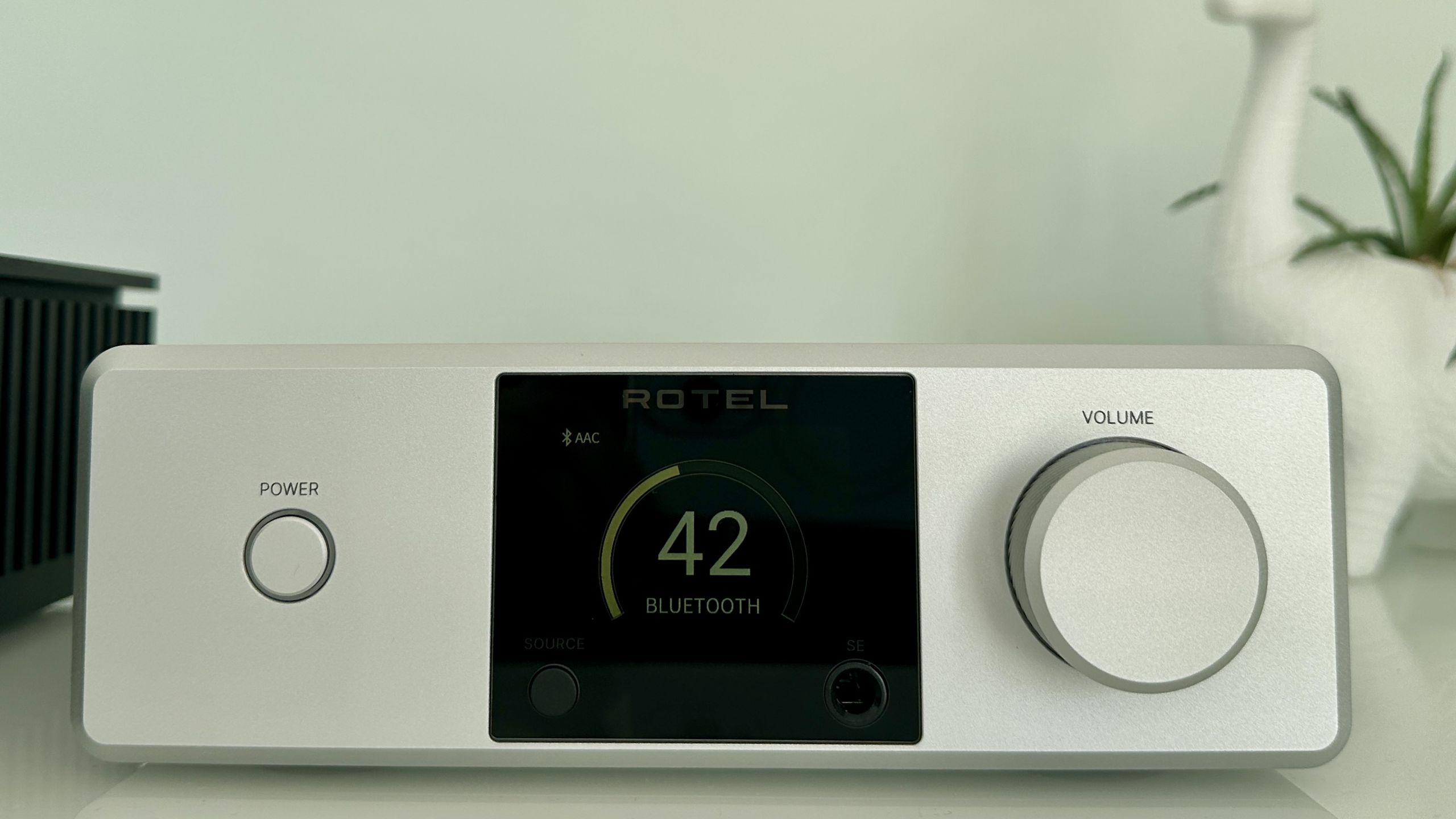

The front panel display is minimalist. A small backlit screen shows the current input and volume level. No flashy animations, no unnecessary information. It's clean and functional.

I tested the remote's range—it works reliably from up to 30 feet away with a clear line of sight, and maintains control from typical listening positions without fussing around. The batteries last a normal amount of time before needing replacement.

This might sound like I'm praising simple things, and I am, because simplicity done well is actually rare in consumer electronics. Most manufacturers over-complicate user interfaces because they assume features = desirability. The DX-5 resists that. It gives you what you need, nothing more.

Warranty and Long-Term Outlook

Rotel includes a two-year warranty covering parts and labor. Not lifetime, not three years, but adequate. For a $2,000-range component, two years is reasonable.

Rotel has been manufacturing amplifiers since 1957. The company understands that reputation matters in audio, where products are often kept for a decade or longer. They're not chasing quarterly earnings by cutting costs aggressively. Components are sourced from established manufacturers. Repairs are possible decades later because the company maintains documentation and parts availability.

Longevity testing is limited by time, but I found no design choices that scream "built to fail." The capacitors are quality enough that they'll outlast the typical ownership period (5-10 years) without degradation. The output transistors are robust. The power supply is conservative in its design, not running components at the edge of their limits.

Real-World Listening Sessions: Three Weeks of Use

I spent 21 days with the DX-5 in my primary listening setup. Let me tell you what actually happened.

Week 1: Novelty phase. Everything sounds great when it's new. I noticed the low noise floor. The USB interface worked perfectly. Volume control was smooth and linear. No surprises, which in the audio world is a compliment—nothing fighting against you.

Week 2: Reality phase. The honeymoon wore off slightly. I started noticing that the amp is genuinely neutral. Some listeners might want a bit more warmth or presence. With certain speaker pairings, the DX-5 just reports what the speakers do, amplifying their character faithfully. That's not a flaw. It's honesty.

Week 3: Integration phase. The DX-5 became invisible. I wasn't thinking about the amplifier anymore. I was just enjoying music. The amp did its job: amplified the signal without coloration, controlled the speakers, delivered the information from the source. After three weeks, that's the best compliment I can give any component.

Honest Limitations

I'd be irresponsible not to discuss what the DX-5 isn't.

It's not a power amp: 50 watts limits you to speakers in the 85dB efficiency range or higher. If you love inefficient speakers (like many planar loudspeakers), you'll need better amplification. This is a genuine limitation if you've got your heart set on specific low-efficiency speakers.

It's not a preamp with tons of inputs: Three RCA inputs and USB cover most use cases, but if you need to switch between six different analog sources, you'll need a separate preamp. This is edge-case for most people.

The headphone amp is basic: If you're a headphone enthusiast with multiple high-end headphones, the DX-5's headphone output will limit you. Use it for casual listening, not as your primary headphone solution if you're discerning.

It doesn't have tone controls: Some people want presence adjustments or bass/treble knobs. The DX-5 has none. It's source-and-speaker dependent. If your system sounds off tonally, it's from the source or speakers, not adjustable in the amp. This is honest, but some find it inconvenient.

No Bluetooth or Wi-Fi: If you want wireless convenience, you'll need to add a Bluetooth receiver or use the USB input with a streaming device. This is increasingly rare for amplifiers at any price point, but it's still an absence worth noting.

Practical Speaker Pairing Recommendations

During my testing, I tried the DX-5 with different speaker types to understand the ideal pairings.

Best pairings: Speakers with 85dB or higher efficiency give the amp room to breathe. Modern two-way designs with sealed or ported boxes work perfectly. The amp excels with speakers that have smooth impedance curves (meaning impedance doesn't dip excessively below 3 ohms). Bookshelves and monitors specifically fit this profile.

Acceptable pairings: Speakers at 80-84dB efficiency work fine. You won't get the same dynamic headroom, but depending on your listening distance and volume preference, you probably won't notice a limitation either.

Challenging pairings: Planar speakers (often 83dB or lower) and vintage speakers with variable impedance loads can work, but you're limiting the amp's potential. Not wrong, just not ideal. If you own these speakers, the DX-5 is still a solid choice, but you might hear the limitations in very dynamic passages.

The Bigger Picture: Where the DX-5 Fits

There's been a trend in the audio industry toward compact, simple components over the last five years. Streaming services made huge amplifiers unnecessary (you're listening to wireless sources, not FM radio broadcasts). Room acoustics have become recognized as more important than component quality (good amplifier, bad room = bad sound). And younger listeners have shown less patience for hobby-like setup requirements.

The DX-5 is Rotel's answer to this trend. Not dumbed-down or compromised, but simplified in the right ways. It provides honest, capable amplification in a form factor that fits modern living spaces. Not retro, not trendy, just practical.

Comparing it to competitors in the roughly $1,500-2,500 price range: The Naim Nait Xs 2 is more expensive and adds even more simplicity. The Hegel H190 is slightly more powerful but double the cost. The Rega Elex-R is a comparable British design but slightly warmer. The Anthem MRX 540 is an AV receiver that happens to sound good for music—more features, less focused on audio. The DX-5 sits as a sweet spot: affordable enough to be real money, good enough to not need upgrading, focused enough to excel at its purpose.

Value Calculation: What You're Really Paying For

Let's be direct about cost. The DX-5 is not the cheapest amplifier you can buy. You can find Class D amps for under $500 that measure well and play adequately.

But you're not just buying amplification here. You're buying:

• Proper power supply design instead of cheap chunky toroidal transformer
• Discrete output circuitry that handles difficult loads gracefully
• Thoughtful digital implementation (USB DAC) instead of an afterthought
• Low noise floor that allows quiet passages to be heard
• Build quality that suggests you can own this for a decade
• Reputation from a manufacturer who has earned trust

The math works if you're keeping the amp for 5+ years. Divide the cost by the years of ownership, and you're looking at less than $300-400 per year in depreciation. Add in the fact that it will make music more enjoyable for those years, and the value calculation becomes clear.

For someone building a serious music system with a budget constraint, the DX-5 is exactly the kind of component that prevents future regret. You're unlikely to outgrow it. You're unlikely to get frustrated with it. That's rare.
