The Ultimate Guide to Riser Cable Setups for Nvidia RTX 5090 Users [2025]

Last month, an ambitious PC builder reached out to me about a persistent issue with his new Nvidia RTX 5090 setup. After hours of troubleshooting bizarre performance drops and random system crashes, the culprit turned out to be a faulty riser cable.

TL; DR

Riser cables can cause significant performance issues if not properly selected and installed.
High-quality riser cables are essential for maintaining the performance of the RTX 5090.
PCIe Gen 4 compatibility is crucial for RTX 5090 users to avoid bottlenecks.
Proper installation and cable management can prevent common pitfalls.
Future trends point towards more robust and efficient riser cable designs.

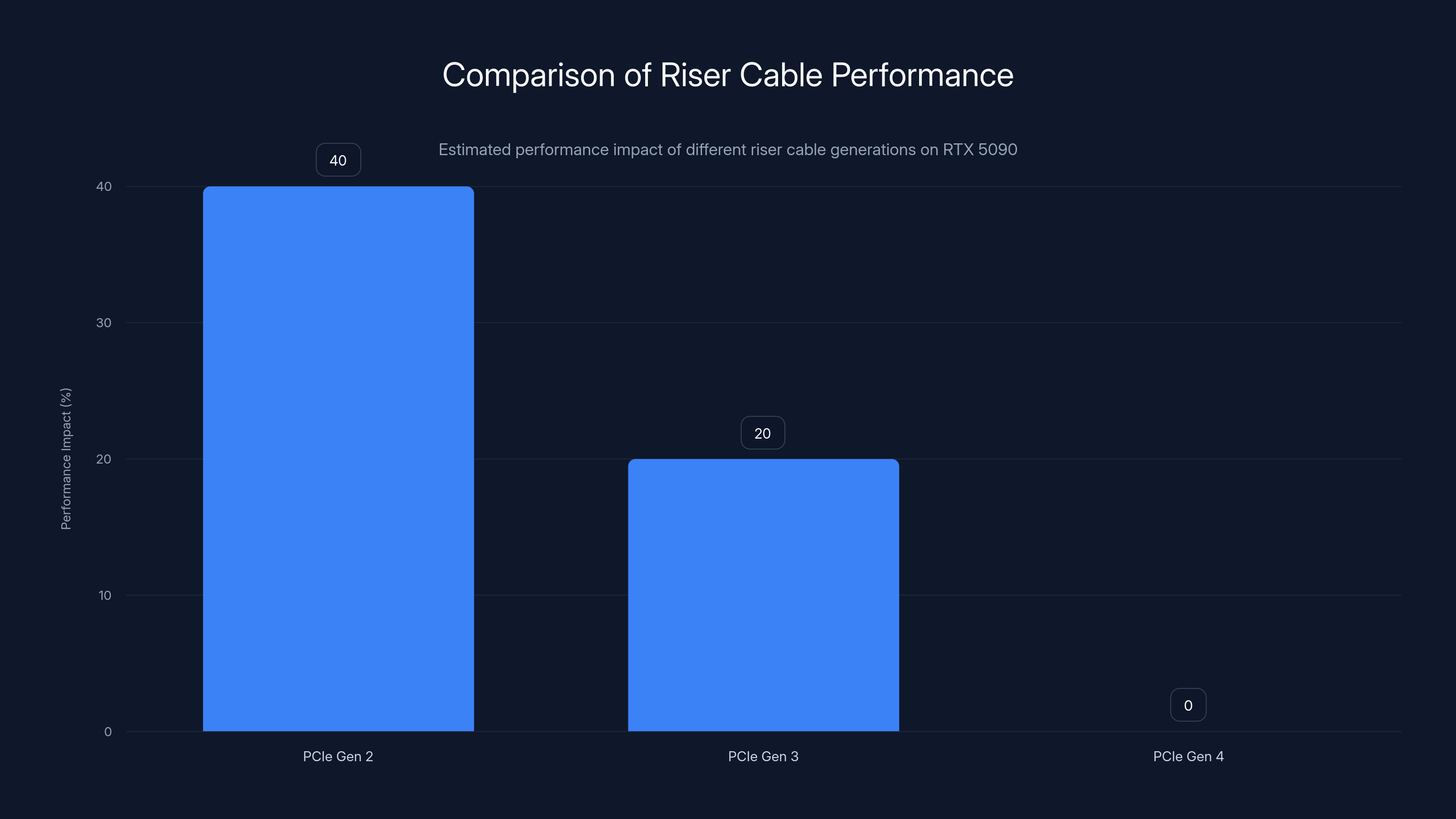

Using PCIe Gen 4 riser cables ensures optimal performance for the RTX 5090, while Gen 3 and Gen 2 can significantly bottleneck the GPU. Estimated data.

Understanding Riser Cables

What Are Riser Cables?

Riser cables, also known as PCIe extenders, are used to connect a graphics card to the motherboard, enabling flexible placement within a PC case. They're essential for custom builds, especially when space constraints or aesthetic considerations mandate unconventional GPU placement.

Why Use Riser Cables?

Riser cables allow GPUs to be mounted in different orientations, often for improved airflow or visual appeal. For instance, in a small form factor (SFF) case, riser cables can help fit a powerful GPU like the Nvidia RTX 5090 without compromising on cooling or space.

Riser Cables and the RTX 5090

The Nvidia RTX 5090 is a powerhouse of a graphics card, but its performance can be severely hampered by subpar riser cables. These cables need to support PCIe Gen 4 to fully leverage the bandwidth capabilities of the RTX 5090. According to reports from TweakTown, improper riser cable setups can lead to severe hardware issues.

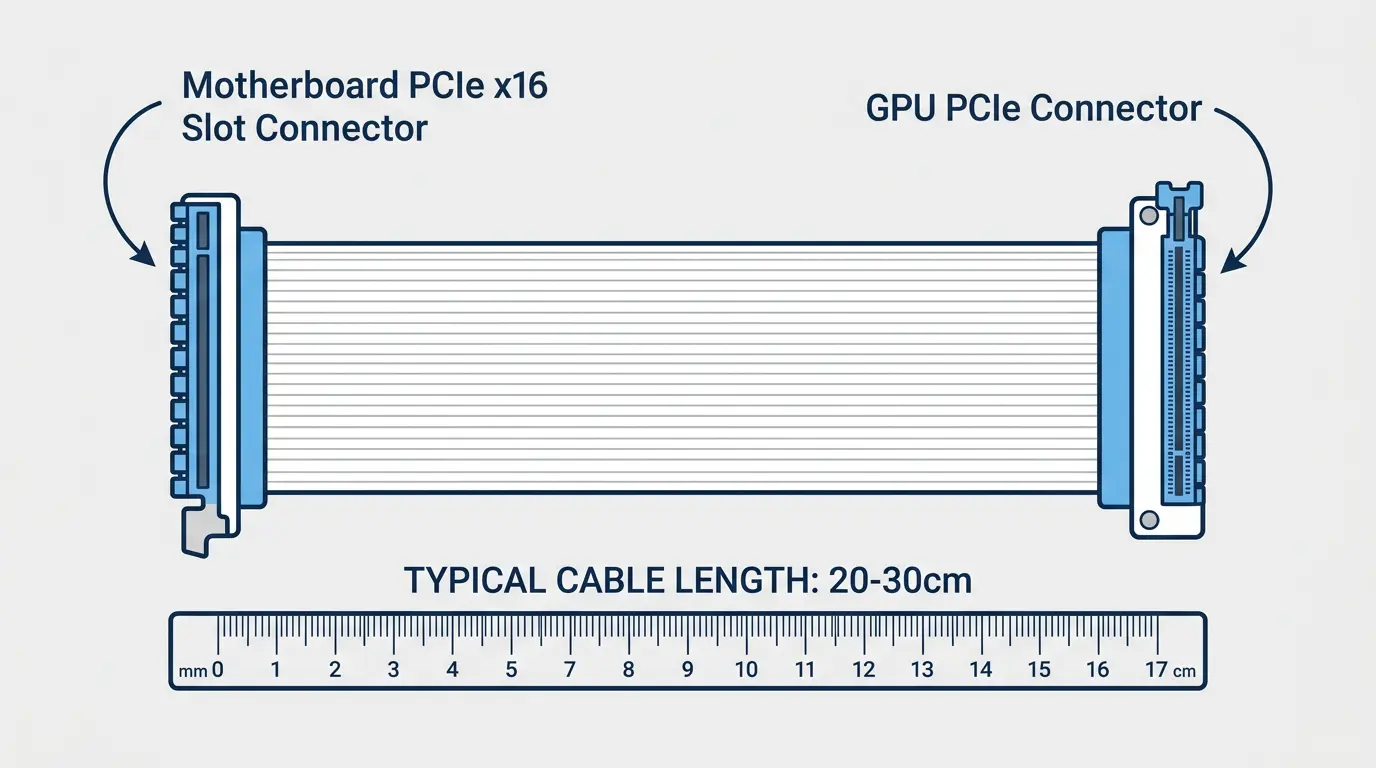

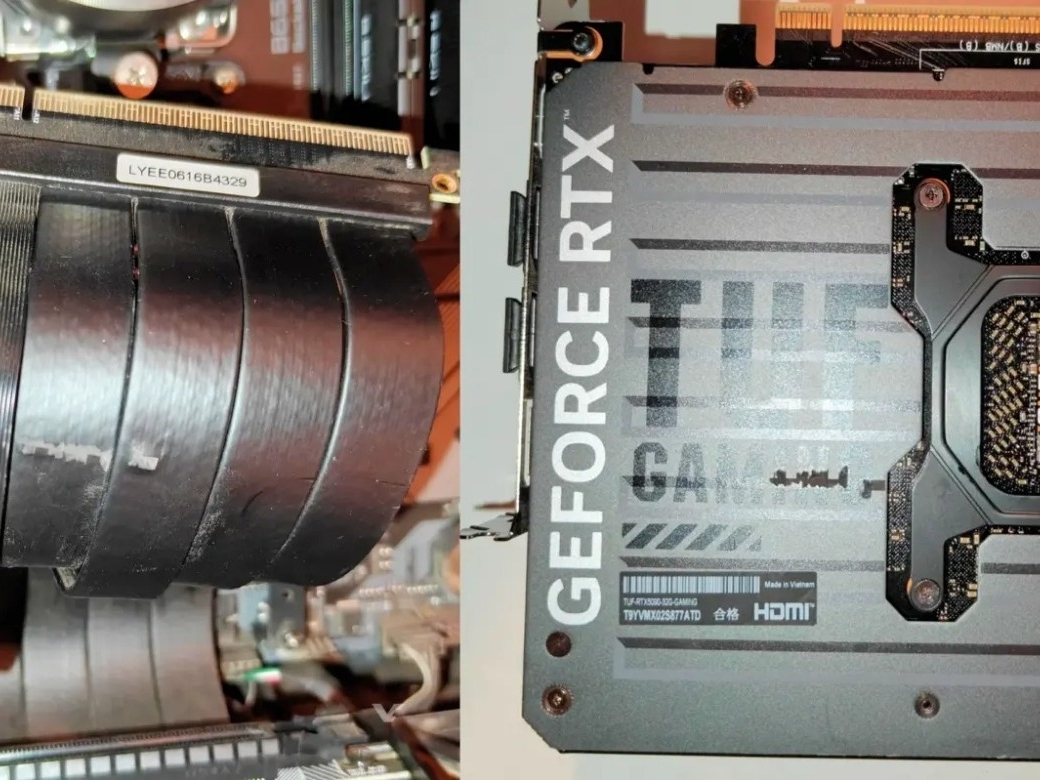

Understanding Riser Cables - visual representation

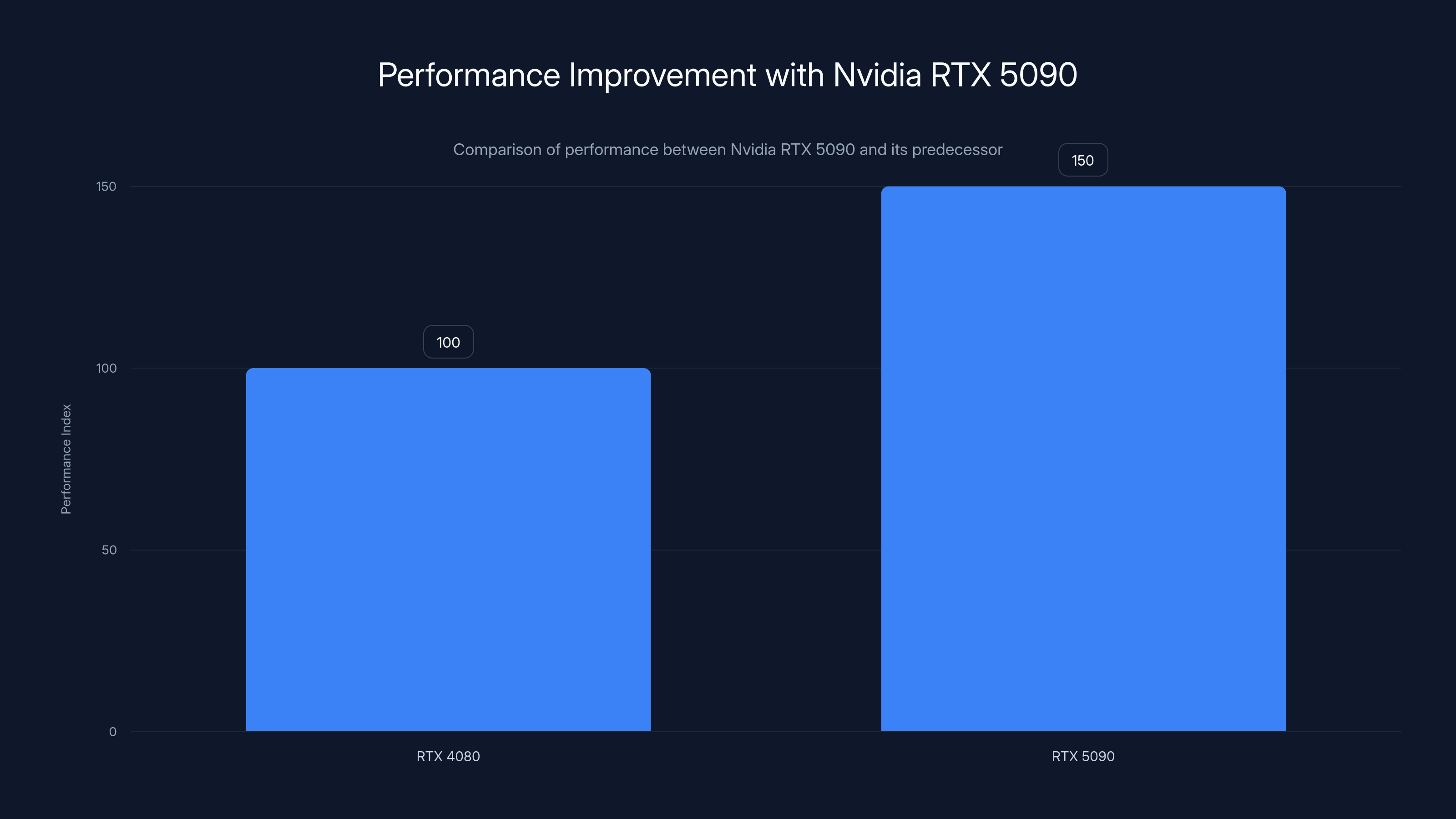

Performance Improvement with Nvidia RTX 5090

The Nvidia RTX 5090 offers up to 50% more performance than the RTX 4080, highlighting the importance of proper riser cable setup to fully utilize its capabilities.

Choosing the Right Riser Cable

Compatibility Matters

Not all riser cables are created equal. When selecting a riser cable for the RTX 5090, ensure it supports PCIe Gen 4. Using a Gen 3 or lower cable can bottleneck the GPU, leading to performance drops. Tom's Hardware emphasizes the importance of matching the cable to the GPU's bandwidth requirements.

Quality Over Cost

High-quality riser cables use better materials and shielding to prevent signal degradation. Brands like Cable Mod and Linkup offer cables that maintain low latency and high throughput, critical for gaming and professional applications. GameGPU highlights the risks of using inferior cables with high-performance GPUs like the RTX 5090.

Length and Flexibility

Consider the length of the riser cable. Longer cables can introduce latency and signal loss. Opt for the shortest cable that fits your setup to minimize these issues.

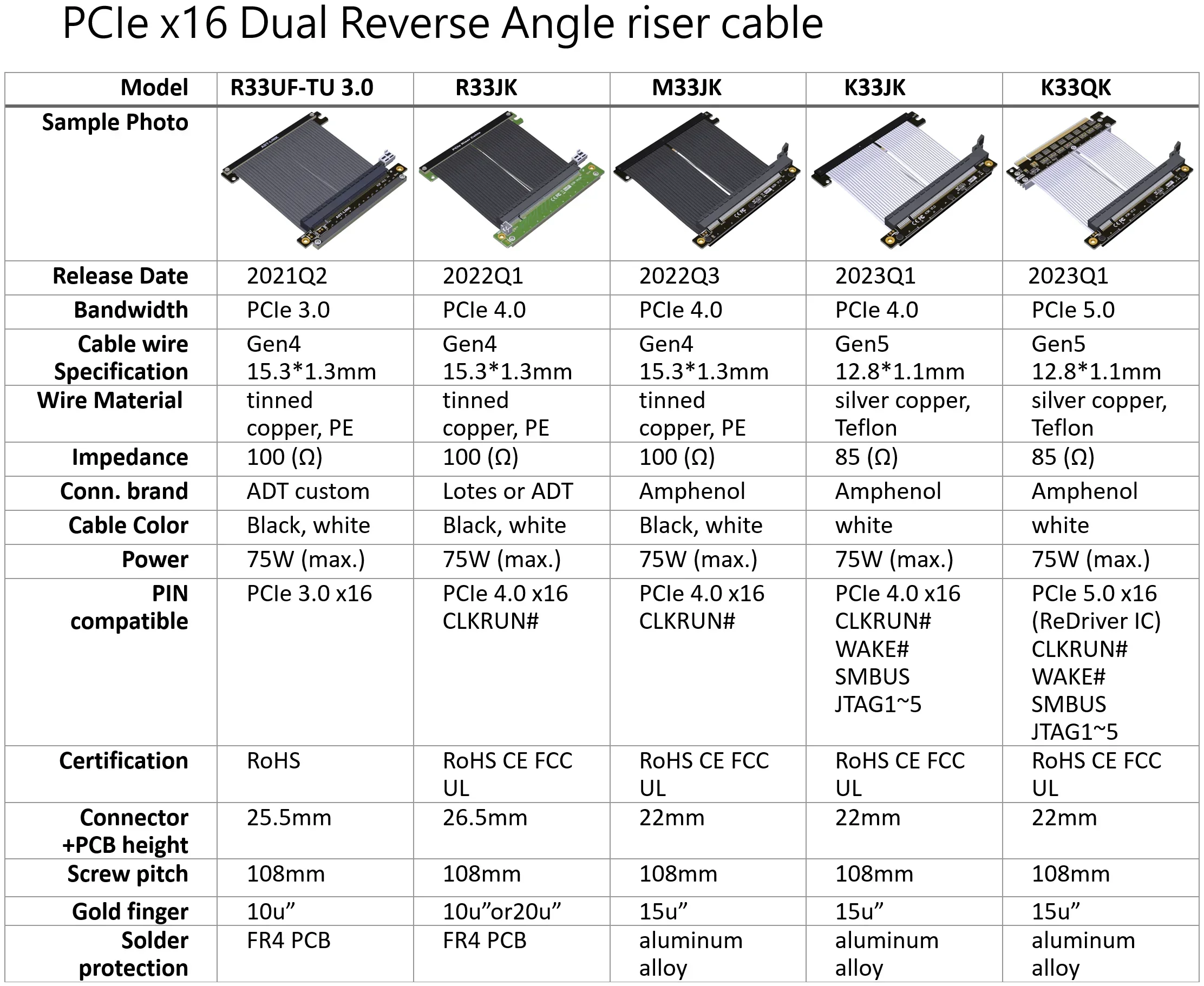

Choosing the Right Riser Cable - contextual illustration

Installing Riser Cables: A Step-by-Step Guide

Tools You'll Need

Phillips screwdriver
Anti-static wrist strap
Cable ties
Riser cable (PCIe Gen 4)

Installation Steps

Prepare Your Workspace: Ensure your PC is powered off and disconnected from the power source. Wear an anti-static wrist strap to prevent static discharge.
Access the Motherboard: Open your PC case to access the motherboard and PCIe slots.
Connect the Riser Cable: Attach the riser cable to the desired PCIe slot on the motherboard. Ensure a snug fit to avoid connection issues.
Position the GPU: Connect the other end of the riser cable to the GPU and position the GPU in your desired orientation.
Secure the Setup: Use cable ties to manage excess cable length and ensure the riser cable does not obstruct airflow.
Power On and Test: Reconnect the power and boot up your system. Check for any performance issues or errors.

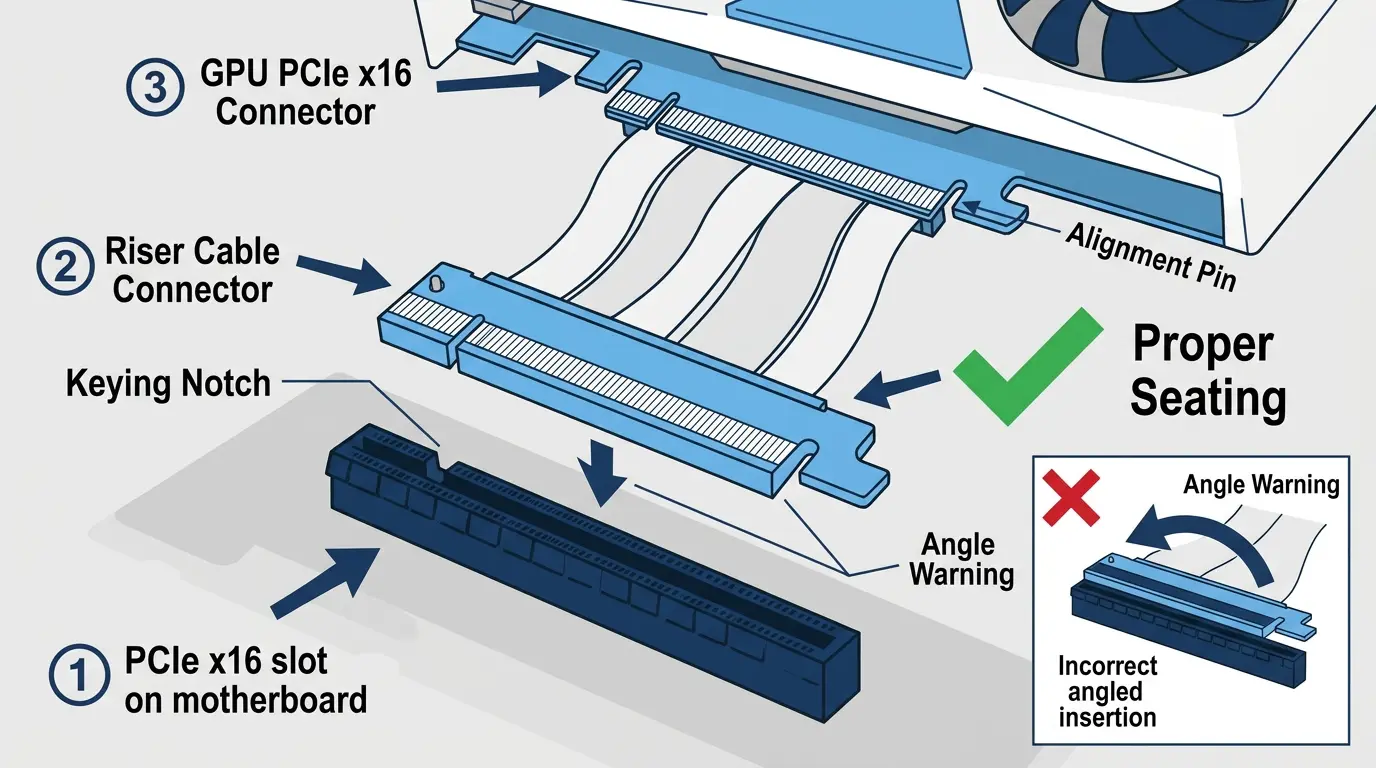

Installing Riser Cables: A Step-by-Step Guide - contextual illustration

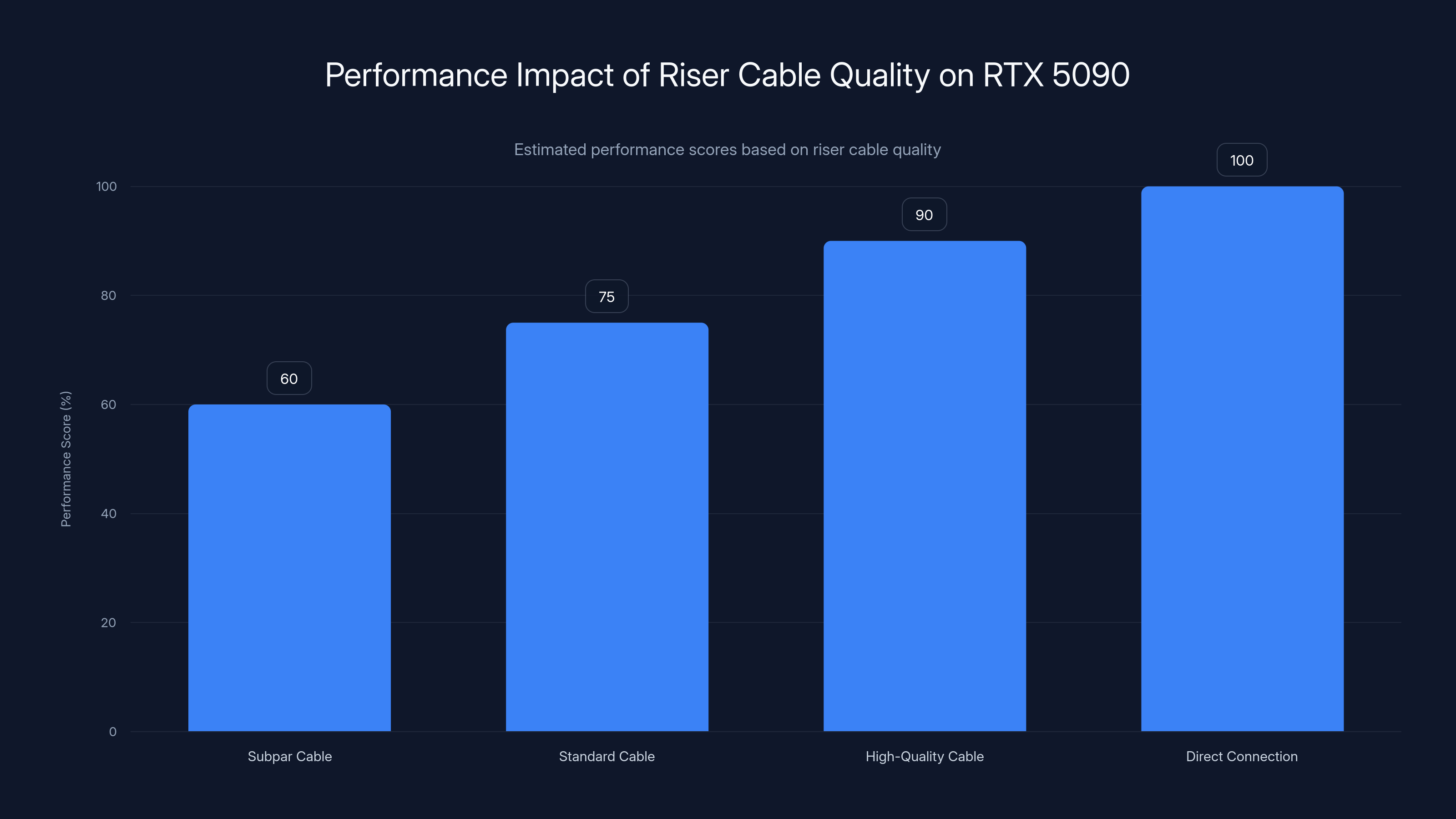

Performance Impact of Riser Cable Quality on RTX 5090

High-quality riser cables significantly enhance the performance of the Nvidia RTX 5090, approaching the efficiency of a direct connection. Estimated data.

Common Pitfalls and Solutions

Signal Degradation

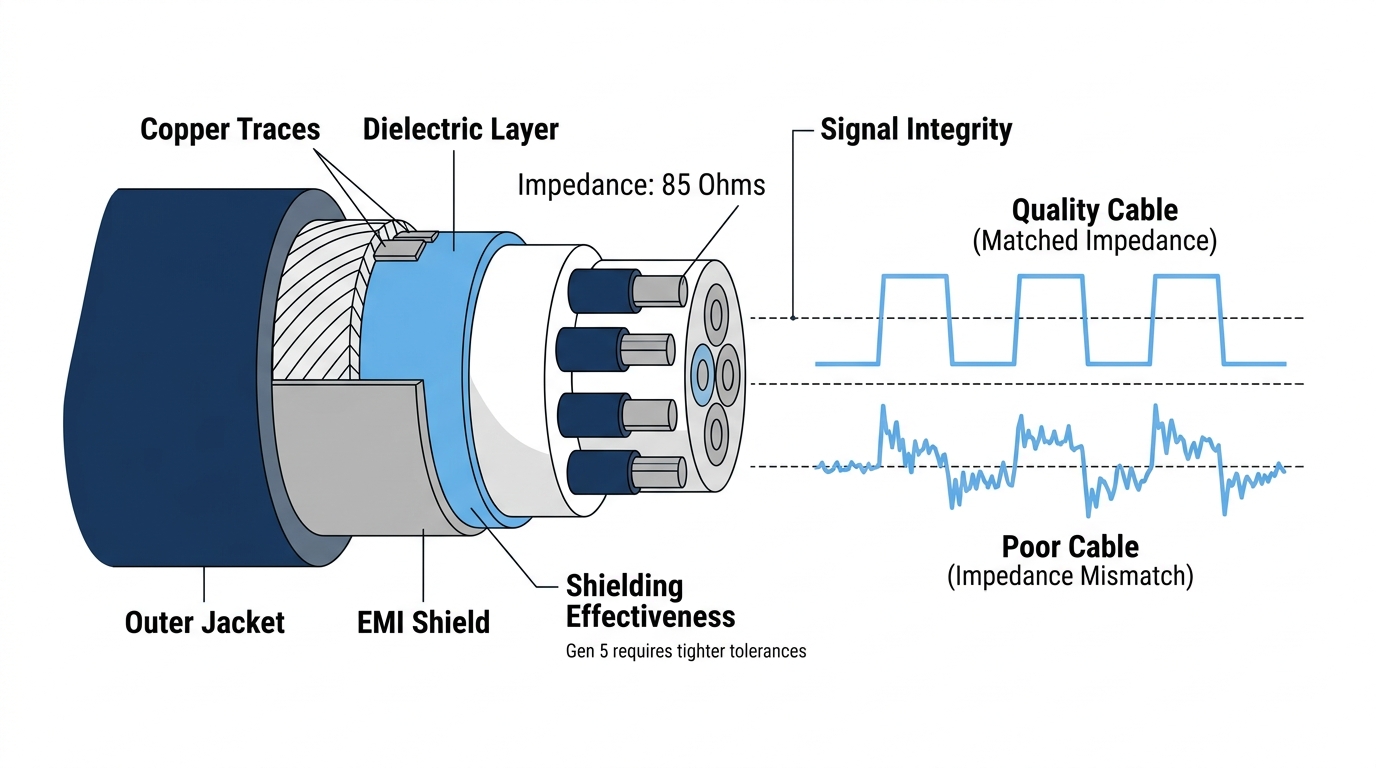

Poor quality cables can result in signal degradation. To mitigate this, use a riser cable with good shielding and ensure it's not bent at sharp angles. HWCooling discusses the importance of material quality in preventing signal loss.

Connection Issues

Loose connections can cause crashes or failure to boot. Double-check all connections during installation.

QUICK TIP: Test your system's performance with and without the riser cable to identify any potential issues early.

Thermal Management

Riser cables can sometimes obstruct airflow if not properly managed. Ensure that the cable routing does not impede air circulation within the case.

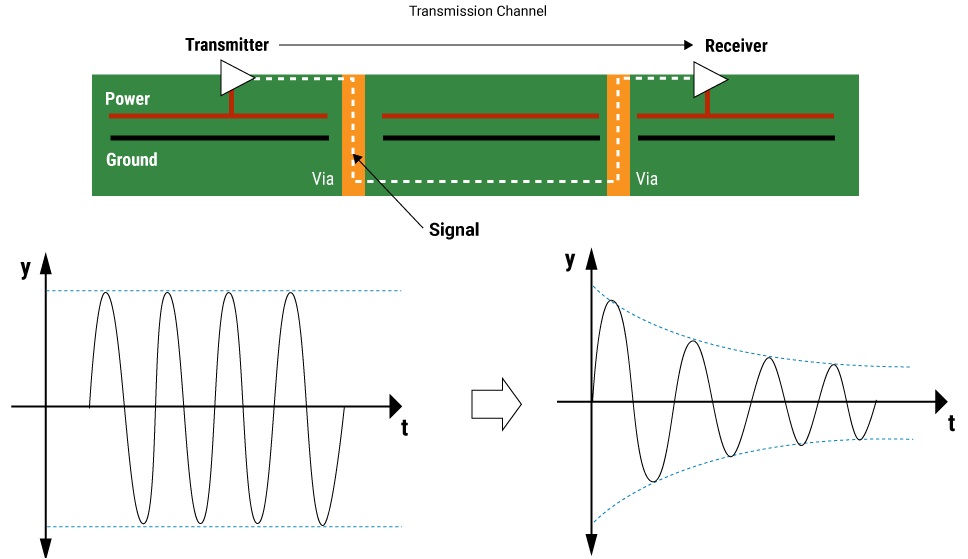

Common Pitfalls and Solutions - contextual illustration

Future Trends in Riser Cable Design

Enhanced Bandwidth

As GPUs become more powerful, the demand for higher bandwidth riser cables will grow. Expect to see improvements in PCIe Gen 5 support and beyond, catering to future Nvidia and AMD GPUs. Tech Insider predicts significant advancements in riser cable technology to meet these demands.

Improved Materials

Manufacturers are likely to adopt new materials and designs to enhance durability and performance, reducing the risk of signal loss and physical wear.

Modular Designs

Future riser cables may offer modular designs, allowing for easier upgrades and replacements without disassembling the entire setup.

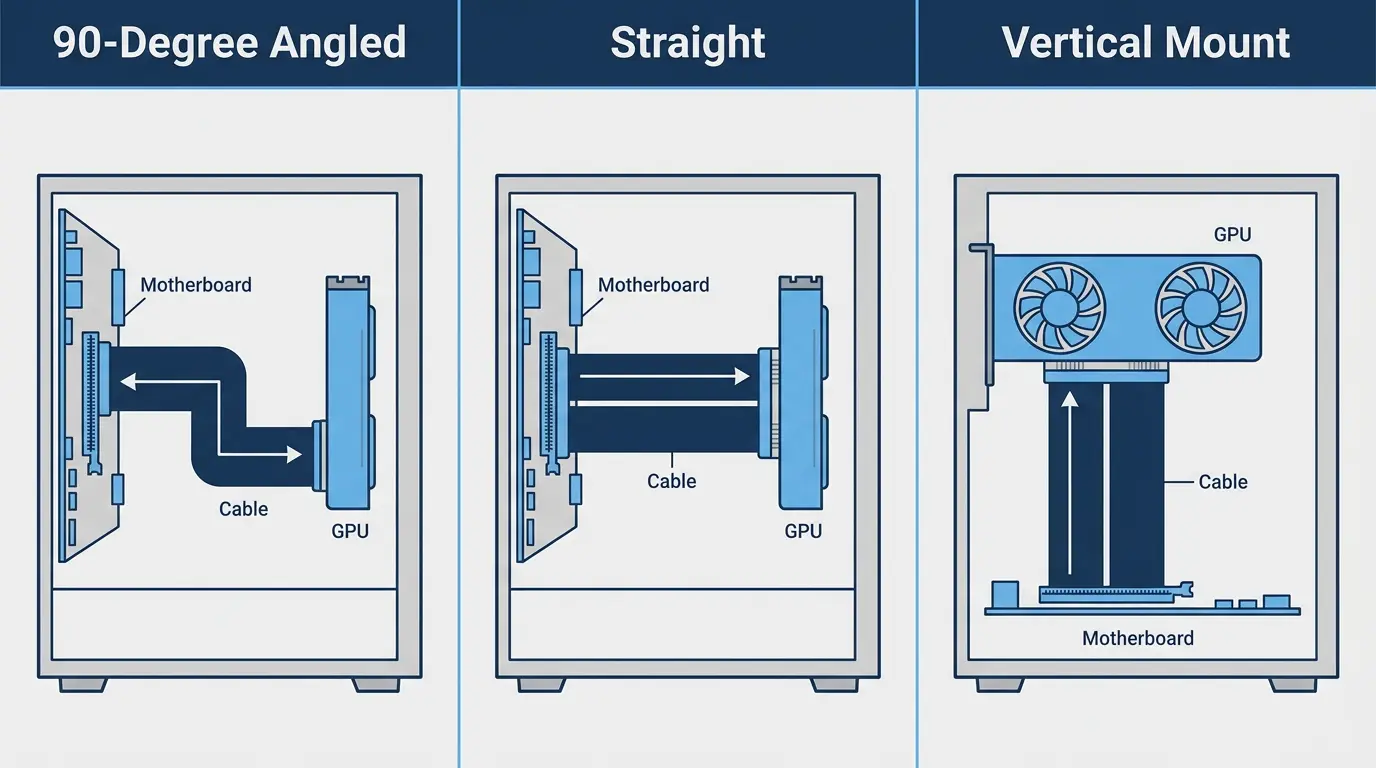

Future Trends in Riser Cable Design - contextual illustration

Best Practices for Using Riser Cables

Regular Maintenance: Periodically check the cable and connections for wear and tear.
Stay Updated: Keep your motherboard BIOS and GPU drivers updated to ensure compatibility and performance.
Avoid Overbending: Keep the cable straight and avoid sharp bends to preserve signal integrity.

Conclusion

Riser cables play a crucial role in maximizing the potential of Nvidia RTX 5090 GPUs, especially in custom builds. By choosing the right cable and following best installation practices, you can ensure optimal performance and longevity for your setup.

DID YOU KNOW: The Nvidia RTX 5090 can deliver up to 50% more performance than its predecessor, making proper riser cable setup even more critical for harnessing its full power.

FAQ

What is a riser cable?

A riser cable is a flexible extension that connects a graphics card to a motherboard, allowing for flexible GPU placement within a PC case.

How do I choose the right riser cable for my RTX 5090?

Ensure the riser cable supports PCIe Gen 4 to match the RTX 5090's bandwidth requirements. Opt for high-quality cables with good shielding.

Can riser cables affect GPU performance?

Yes, using a riser cable that doesn't support the necessary bandwidth can bottleneck performance. Quality and proper installation are key.

What are common issues with riser cables?

Common issues include signal degradation, connection problems, and thermal management challenges. Using high-quality cables and proper installation can mitigate these.

Are there future designs in riser cables?

Yes, future riser cables will likely support higher bandwidths, use better materials, and offer modular designs for easier upgrades.

How can I maintain my riser cable setup?

Regularly check for wear and tear, ensure connections are secure, and avoid bending the cable excessively to maintain optimal performance.

By understanding and addressing the complexities of riser cable setups, Nvidia RTX 5090 users can enjoy enhanced performance and reliability in their custom PC builds. Whether you're a seasoned builder or new to the scene, the insights and best practices shared in this guide are designed to help you make informed decisions and optimize your setup.

Key Takeaways

Ensure riser cables are PCIe Gen 4 compatible to avoid performance bottlenecks.
Quality riser cables prevent signal degradation and maintain GPU performance.
Proper installation and management of riser cables are critical for system stability.
Future riser cables may support PCIe Gen 5 and feature modular designs.
Regular maintenance and updates can prolong the lifespan of your GPU setup.
Avoid overbending riser cables to preserve signal integrity.
Riser cables are essential for flexible GPU placement in custom PC builds.
