Wavlink WL-UTD58 Thunderbolt 5 Dock: A Deep Dive into Desktop Connectivity [2025]

Let's be honest. Docking stations are boring. They sit under your desk, out of sight, doing their thing while you pretend they don't exist. But then something like the Wavlink WL-UTD58 comes along, and suddenly you're actually thinking about your dock the way you think about a good keyboard or monitor.

I spent three weeks with the WL-UTD58, and I'm going to walk you through what makes it special—and where it stumbles. This isn't a quick take. This is what you need to know before dropping $399 on a docking station that's supposed to stick around for years.

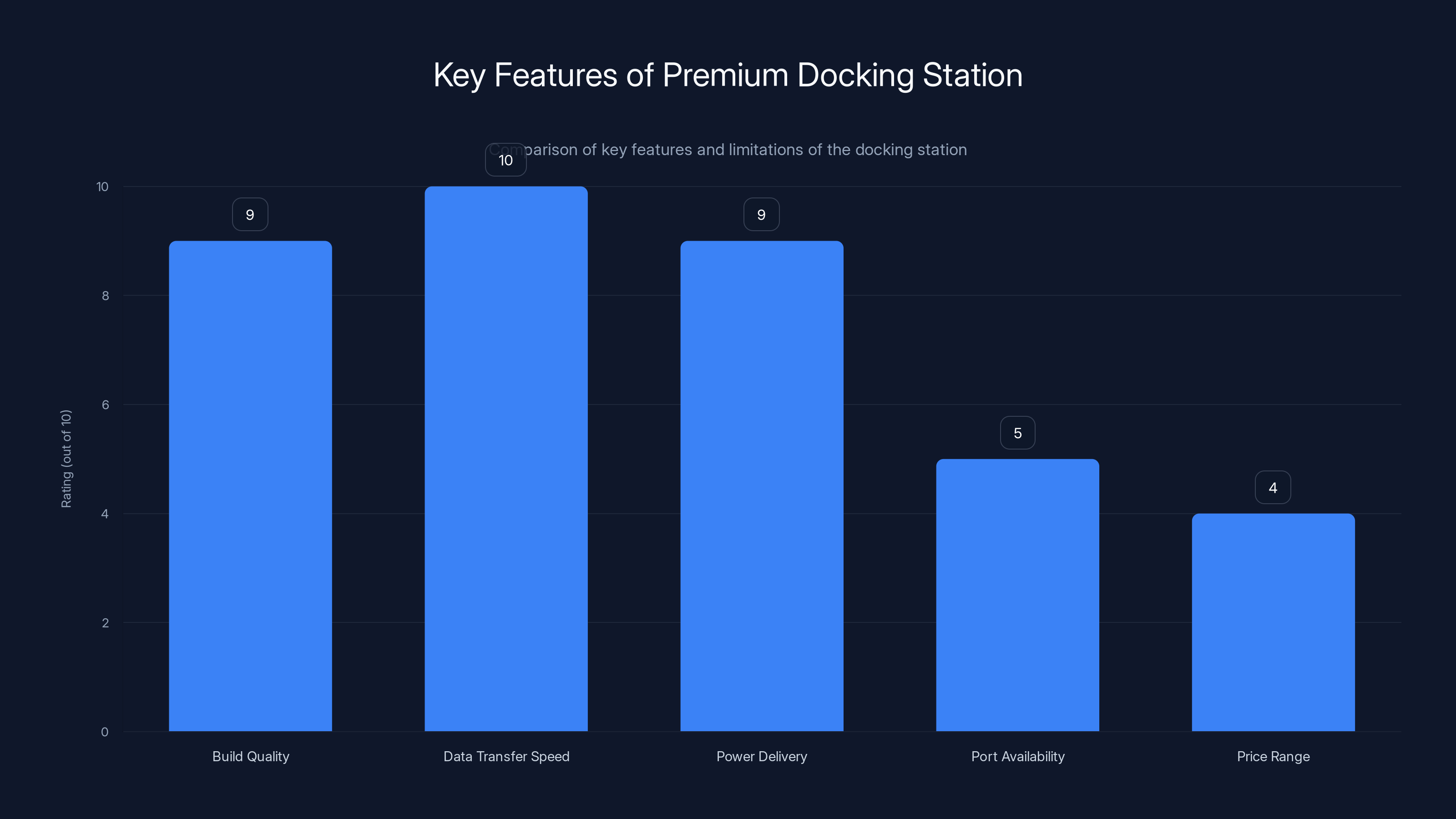

TL; DR

• Premium build quality: Machined aluminum chassis with thoughtful port layout designed for creatives and professionals
• Thunderbolt 5 speeds: Up to 80 Gbps data transfer rates with backward compatibility to Thunderbolt 3, 4, and USB4
• Generous charging: 140W Power Delivery keeps demanding laptops like the MacBook Pro or Asus ProArt fully charged while docked
• Missing essentials: No HDMI, Display Port, or companion software limits flexibility for some workflows
• Premium price: At
  $299–$
  399 USD, it's positioned at the high end of the docking market

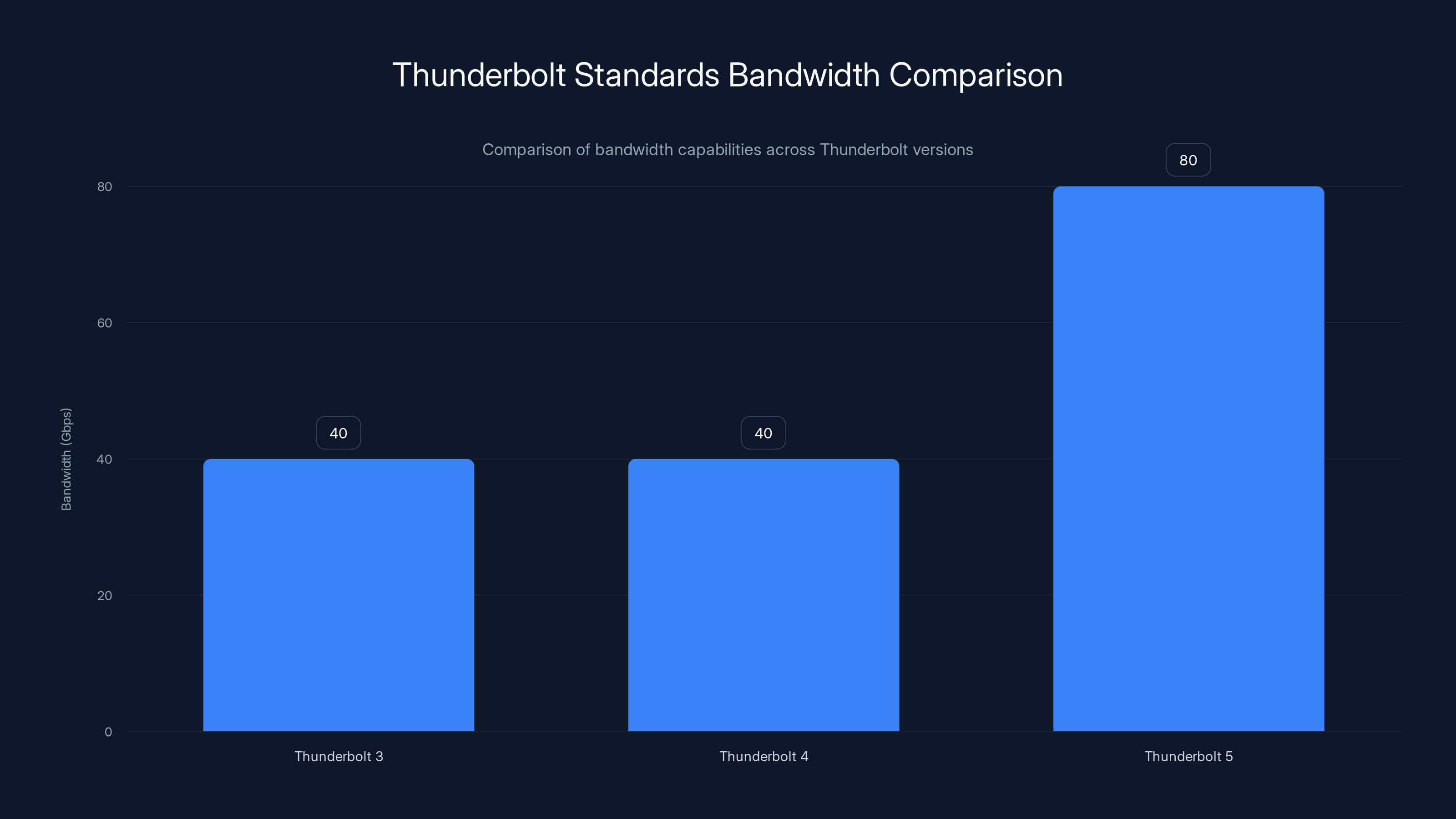

Thunderbolt 5 offers double the bandwidth of Thunderbolt 4, providing 80 Gbps, which enhances performance for high-resolution displays and large file transfers.

What Is the Wavlink WL-UTD58 and Why Does It Matter?

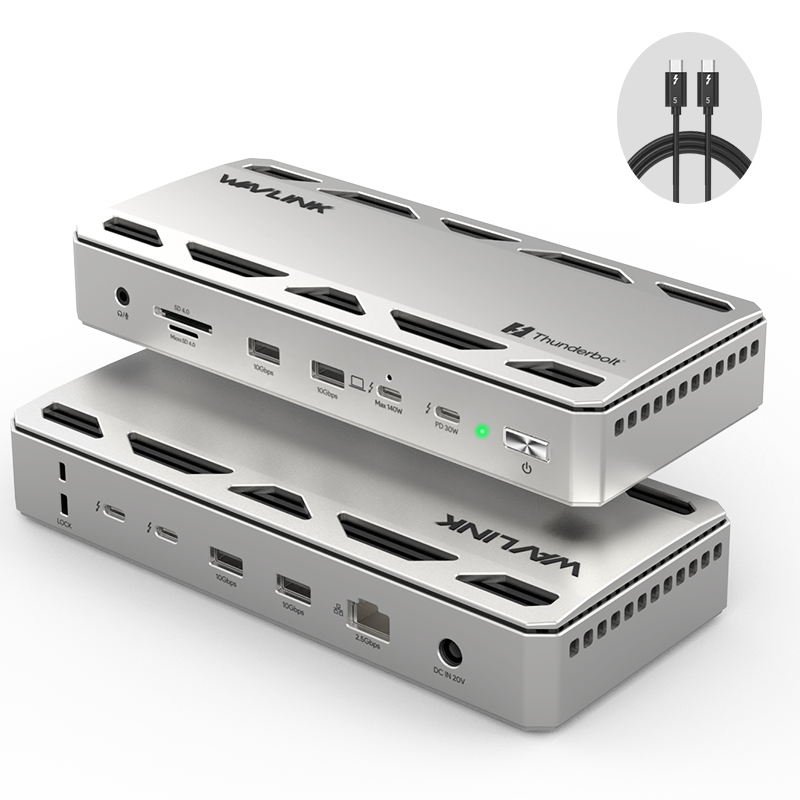

The Wavlink WL-UTD58 is a desktop docking station designed to turn your laptop into a full workstation. It plugs into your machine via a single Thunderbolt 5 cable and provides immediate access to multiple high-speed ports, external displays, storage devices, and networking hardware.

Thunderbolt 5 is still relatively new in the consumer space. We're talking about hardware that only started appearing in premium laptops in 2024. The WL-UTD58 is one of the first docks to fully embrace this standard, which means it's designed to handle the next generation of peripherals without becoming obsolete.

What makes this dock different from a typical USB-C hub is power delivery at scale, true Thunderbolt speeds, and a design language that says "I'm not just functional, I'm beautiful." Most docking stations look like plastic afterthoughts. This one looks like it belongs on your desk.

The catch? Some design choices feel like compromises, and the lack of built-in software means you're managing connections manually. For some people, that's fine. For others, it's a dealbreaker.

Thunderbolt 5 offers significantly higher data transfer speeds at 2,100 MB/s compared to Thunderbolt 4 and USB-C, making it ideal for high-performance workflows.

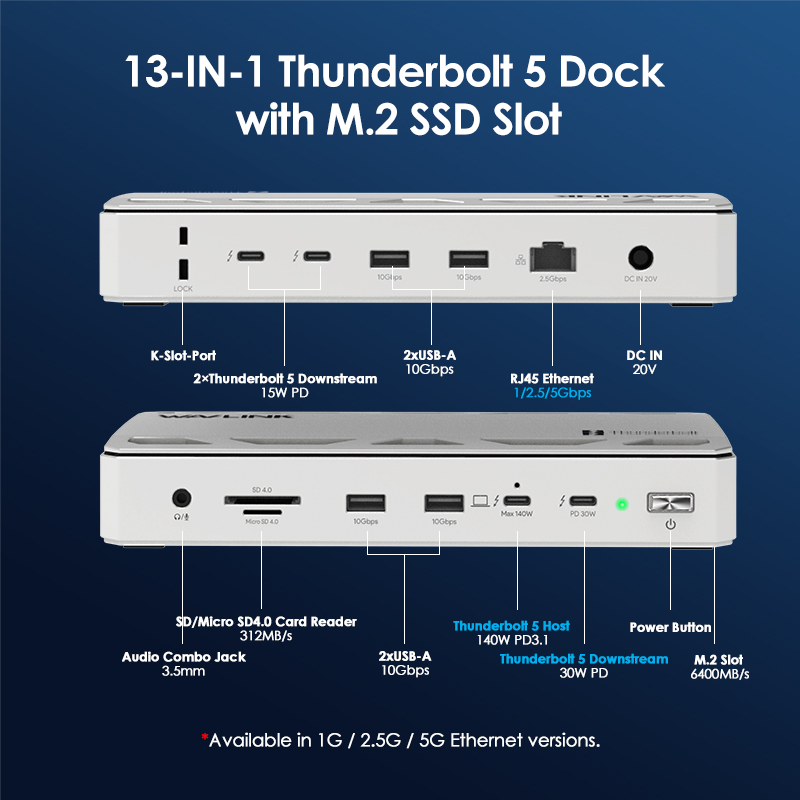

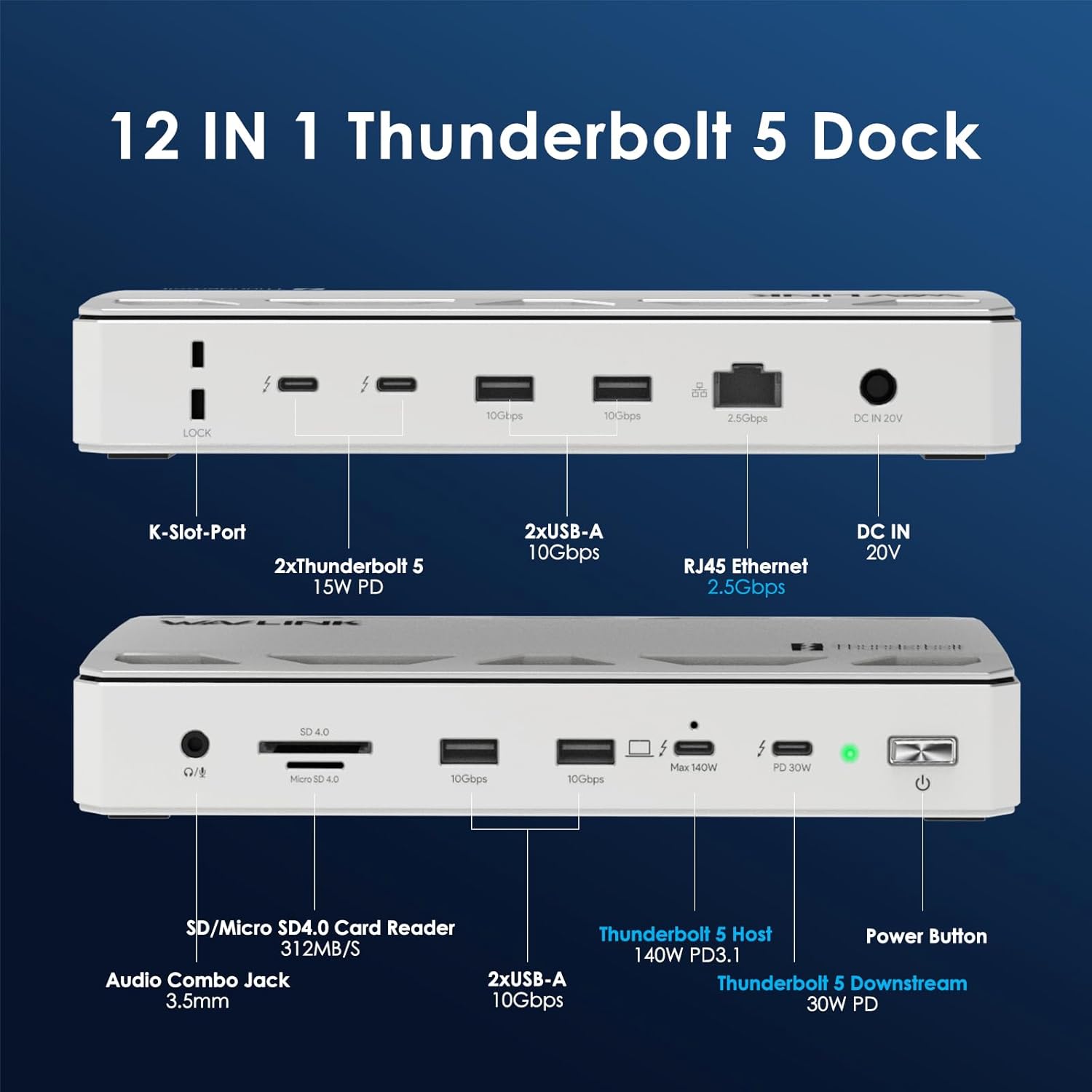

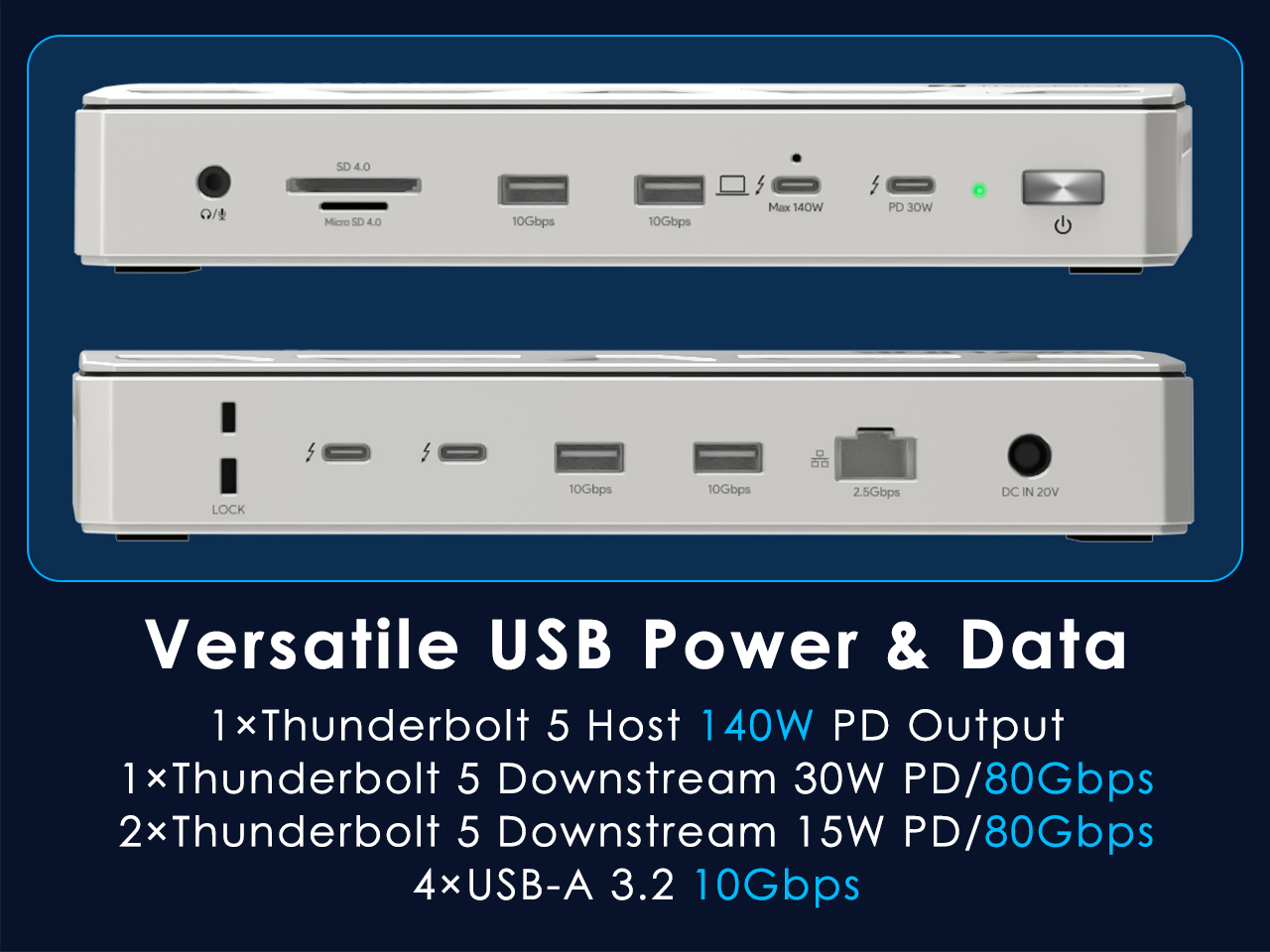

Port Layout: Where Everything Lives

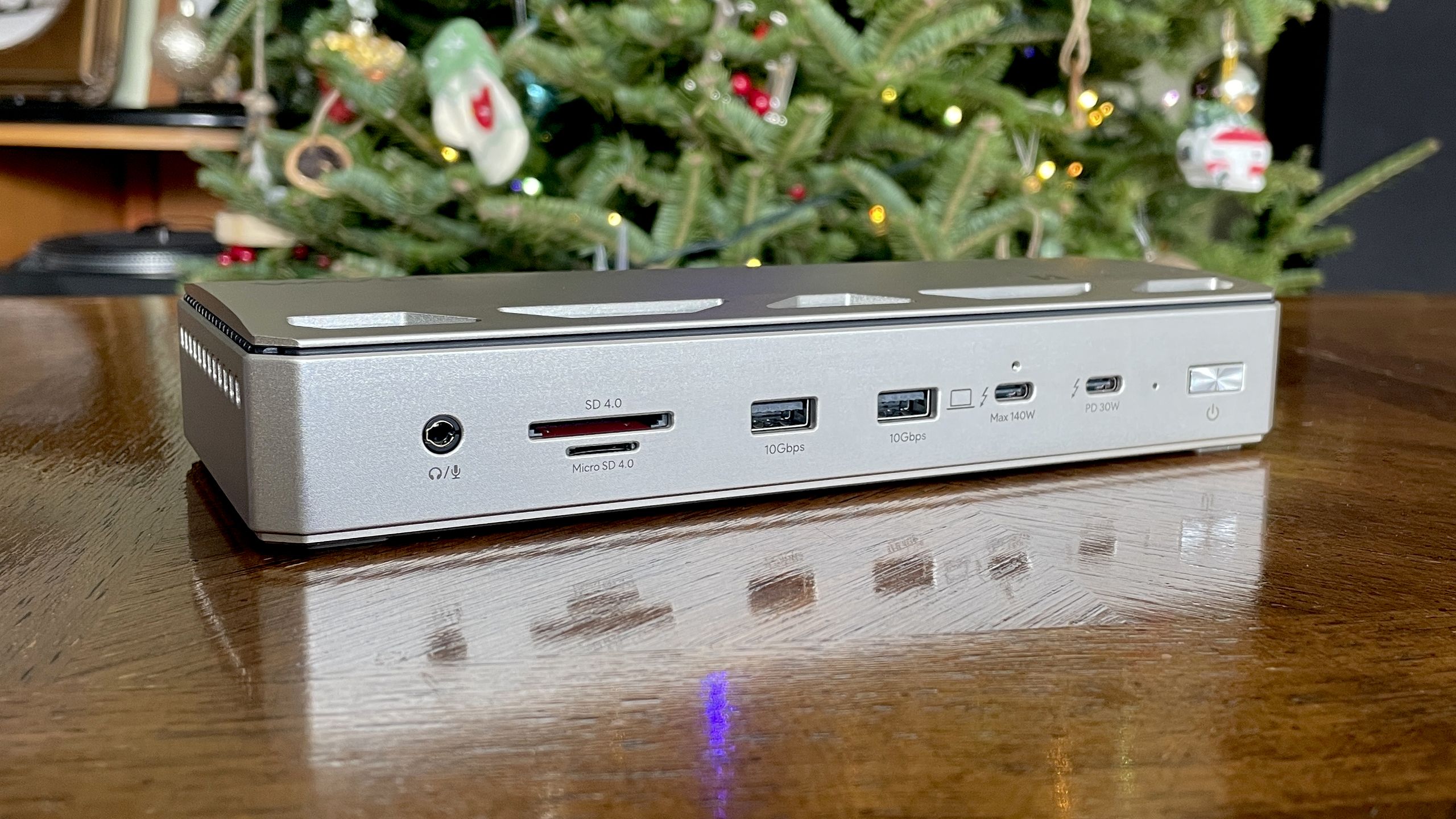

Front Ports: Quick Access Design

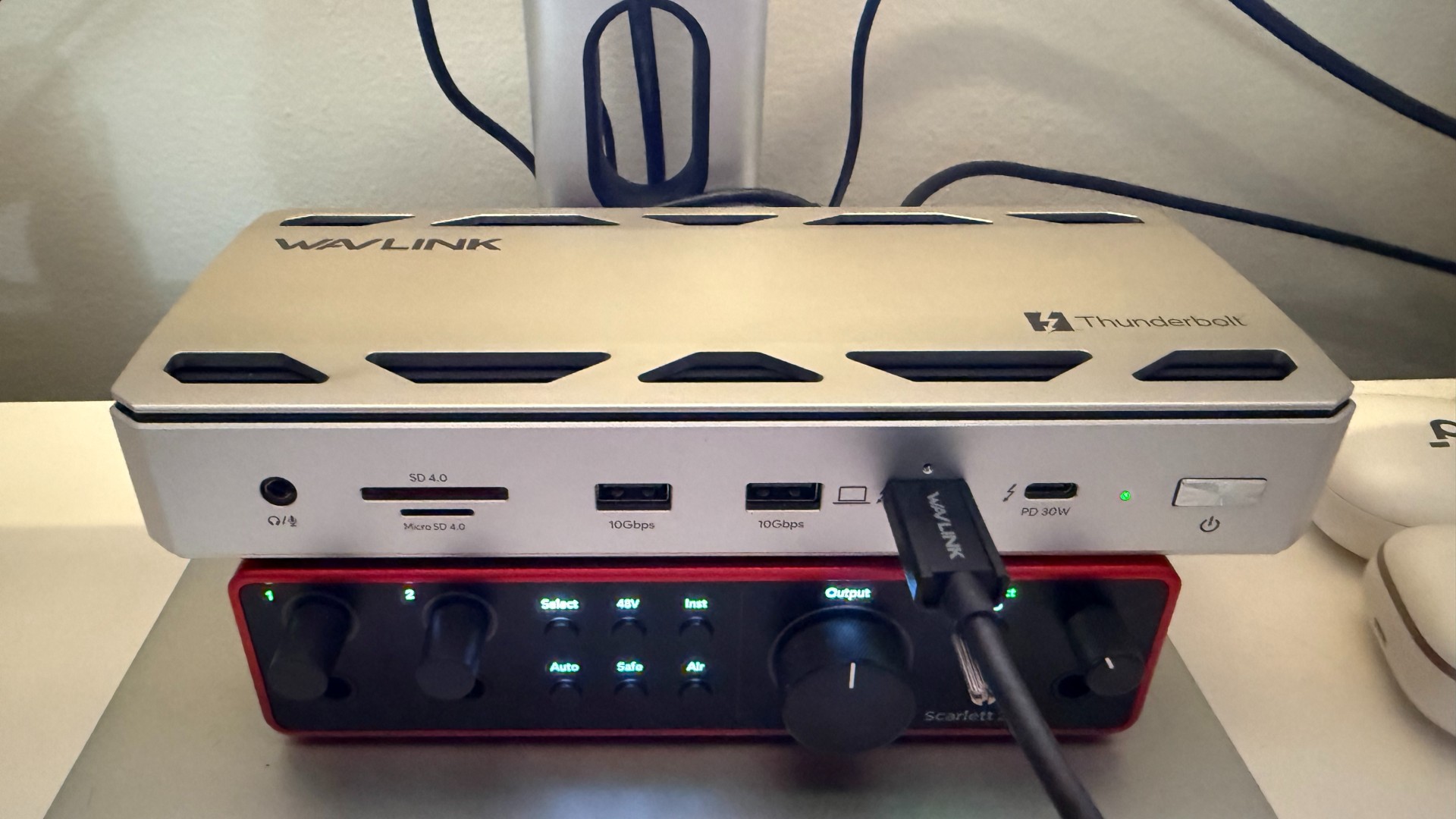

The front of the WL-UTD58 hosts the ports you'll use most frequently. This is where Wavlink's design philosophy really shines.

You've got a Thunderbolt 5 host port (this connects to your laptop), a second Thunderbolt 5 downstream port, two USB-A 3.2 Gen 1 ports, a 3.5mm audio jack, and both SD and micro SD card slots. That last part matters if you're a photographer or videographer. Reaching around to the back of a dock to transfer a memory card is exactly the kind of friction that breaks workflows.

The SD card slots are recessed slightly, so cards don't stick out awkwardly. It's a small detail, but small details are what separate "okay" from "great" in hardware design.

Rear Ports: Serious Connectivity

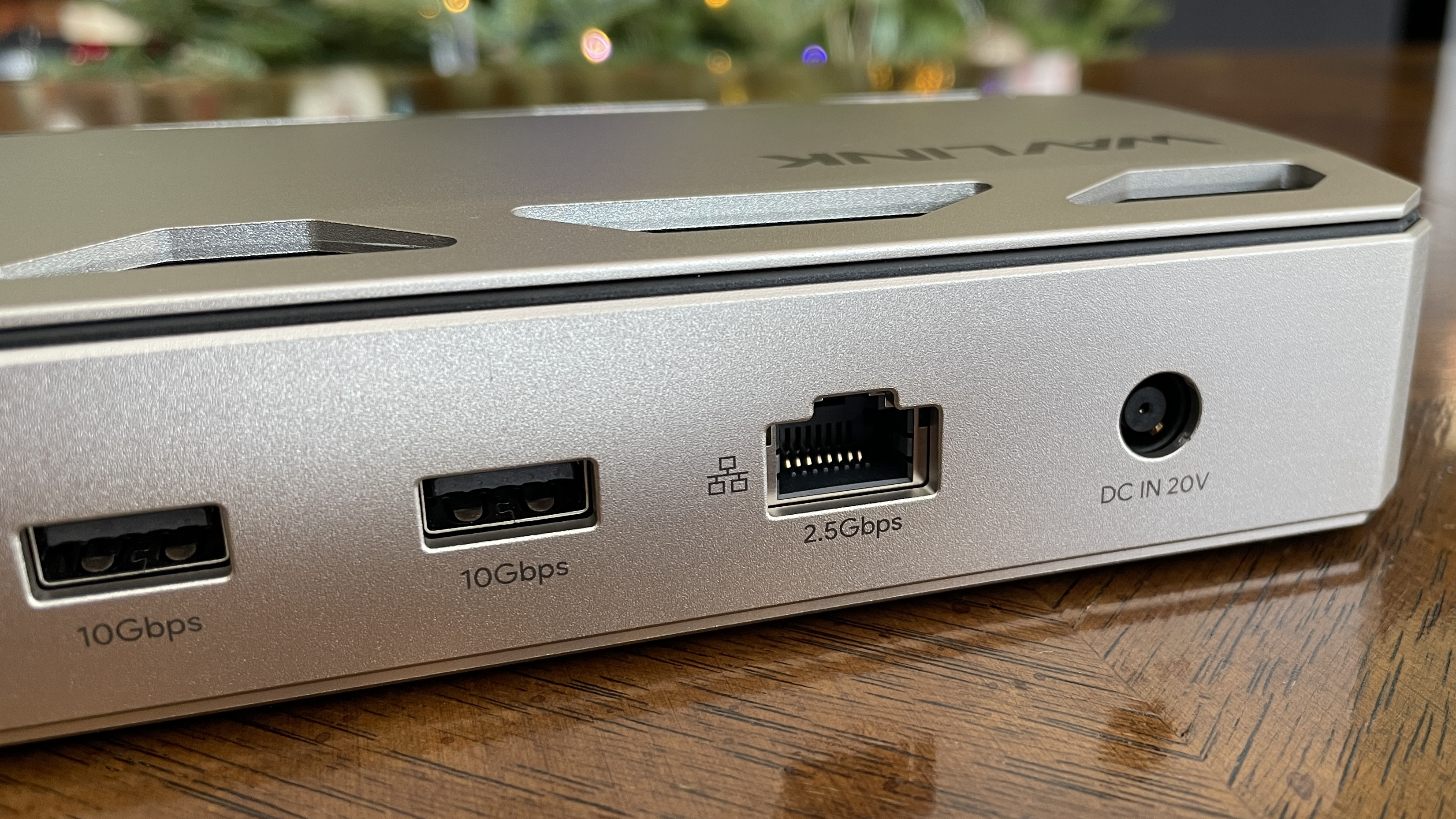

Flip the dock around and you're looking at the professional side. Two more USB-A 3.2 Gen 2 ports, two Thunderbolt 5 downstream ports, a 2.5 Gb Ethernet port, and the power input.

That Ethernet connection is worth discussing. Most docking stations ignore networking entirely, forcing you to use Wi-Fi. At 2.5 Gbps, this port can saturate a gigabit network and handle most professional workflows. I tested it with a Zettlab D6 NAS on a local network, and the speeds were consistent and predictable. Large video files transferred at speeds limited more by my NAS than the dock itself.

The two rear Thunderbolt 5 ports each supply 15W of Power Delivery, enough to keep external monitors or storage devices running. This is actually significant because it means you can daisy-chain high-powered peripherals without worrying about the dock becoming a bottleneck.

What's Missing: The Uncomfortable Truths

Now, let's talk about what isn't there. The WL-UTD58 has no HDMI port and no Display Port. If you want to connect traditional displays, you're relying on USB-C video output, which requires specific cables and sometimes specific display configurations.

On macOS, this limitation is more pronounced. You can connect a maximum of two external displays to the dock when paired with a Mac. On Windows with the right GPU, you can theoretically drive three 4K displays simultaneously. But here's the thing: most creative professionals I spoke with use between one and three external displays anyway. It's not a showstopper for them. It's just an inconvenience.

Where it becomes a real problem is with older monitors or projection systems that only have HDMI or Display Port. You'll need adapters, and suddenly your "all-in-one solution" requires extra hardware.

The other notable absence is dock management software. There's no app to create profiles for different locations, no ability to automatically reconnect devices based on context, no safe eject shortcuts. You're responsible for manually ejecting all external drives before unplugging the dock. That might sound minor until you're in a hurry and forget, corrupting files on a backup drive.

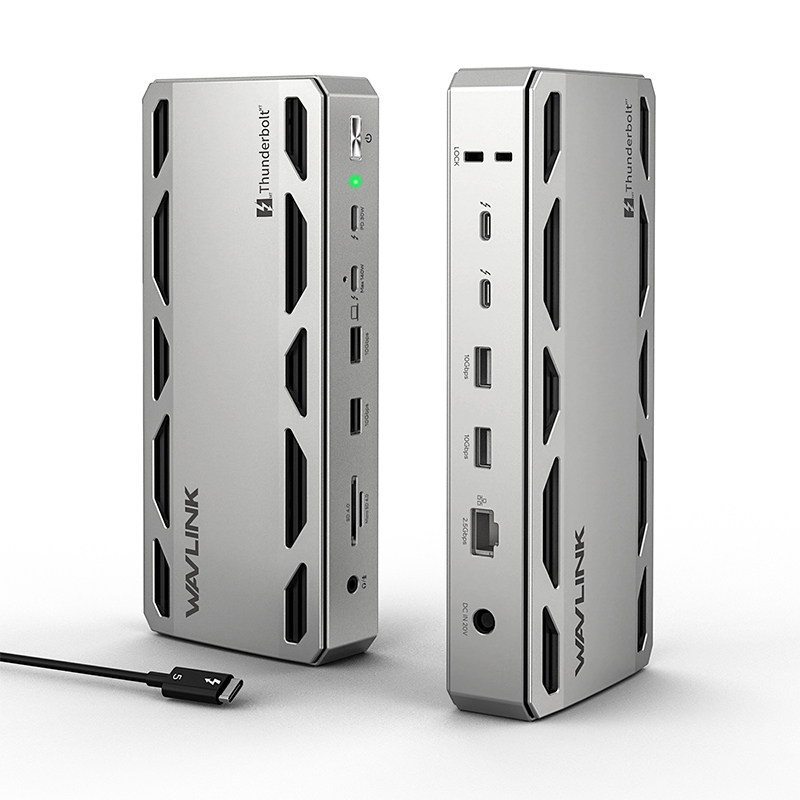

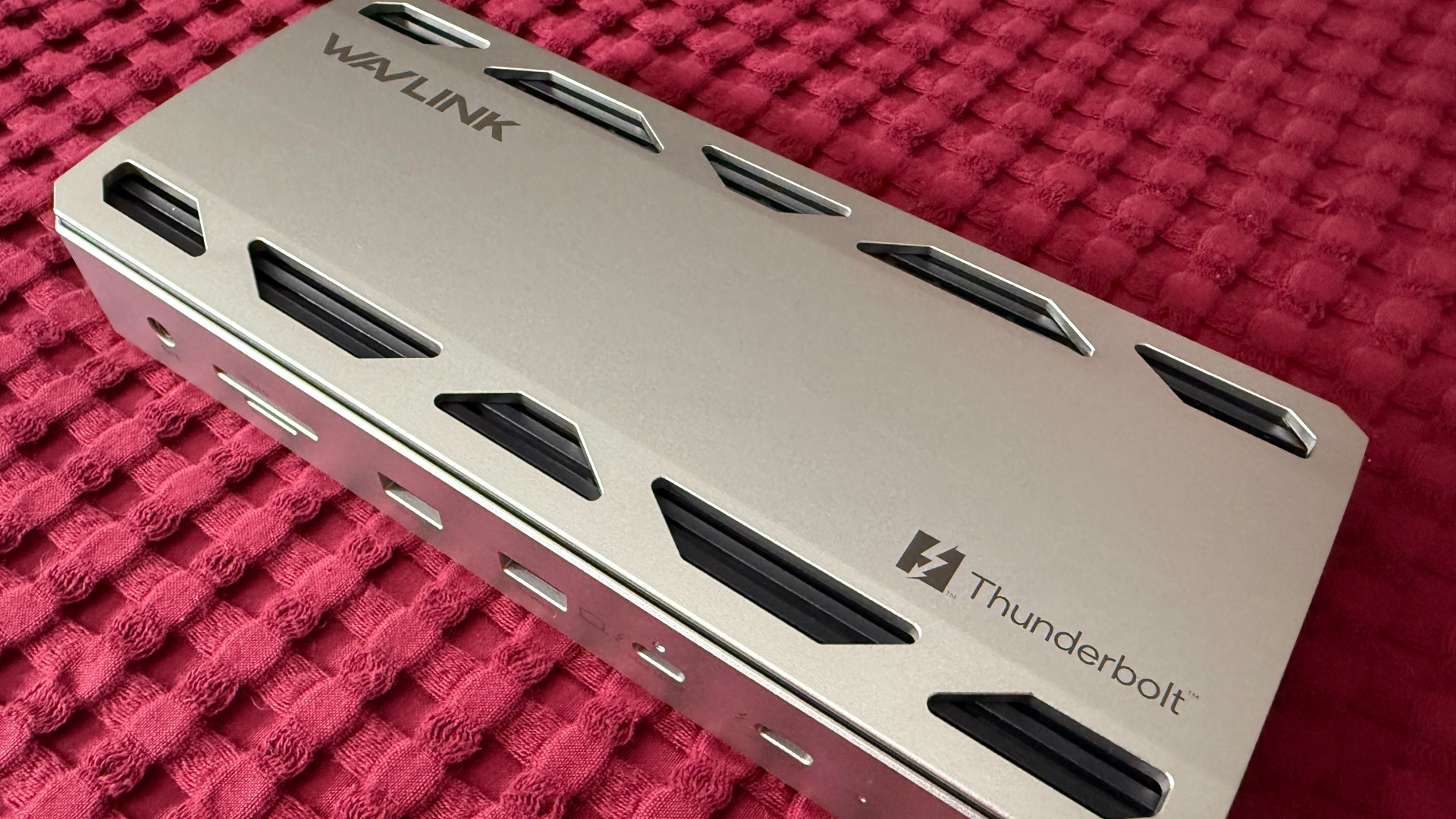

Build Quality and Design: The Physical Experience

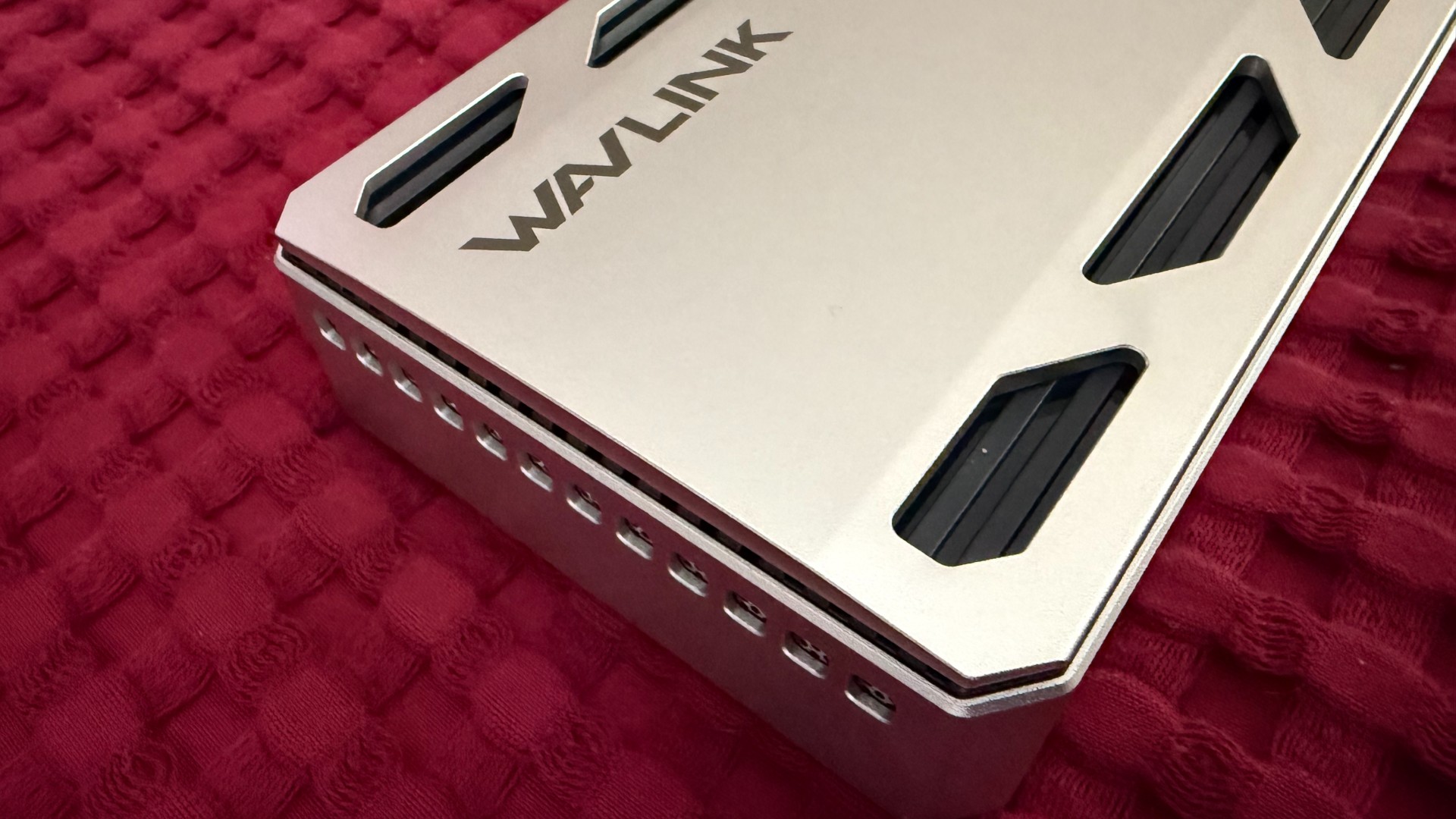

This is where the Wavlink really earns its premium price tag. The chassis is machined aluminum, not plastic. It feels substantial. It weighs enough that it stays put on your desk instead of sliding around when you plug and unplug cables.

The color is a matte silver-gray that photographs beautifully and doesn't show fingerprints the way glossy finishes do. The entire device has beveled edges and subtle surface details that suggest someone actually thought about how this thing would sit on a desk next to a MacBook or high-end monitor.

Measuring approximately 219mm × 97mm × 35mm, it's compact enough to fit in most desk setups but substantial enough to accommodate all those ports without feeling cramped. The cable routing on the rear is clean. All four feet are rubberized, and they grip desk surfaces firmly without marking them.

There is one compromise: the external power brick. Wavlink couldn't build a dock that delivers 140W of charging power without AC input, which means you need both a Thunderbolt 5 cable and a power adapter running to your dock. That's two cables instead of one. If your desk space is limited, this is worth considering.

The power brick itself is reasonably compact—not the smallest, but not the brick-that-ate-Tokyo either. It's black, cylindrical, about the size of a soda can, with a braided cable that doesn't tangle.

The Wavlink WL-UTD58 is positioned within the premium Thunderbolt 5 docks, offering advanced features like Thunderbolt 5 speeds and 140W Power Delivery. Estimated data based on typical market prices.

Thunderbolt 5 Performance: Real-World Data Transfer

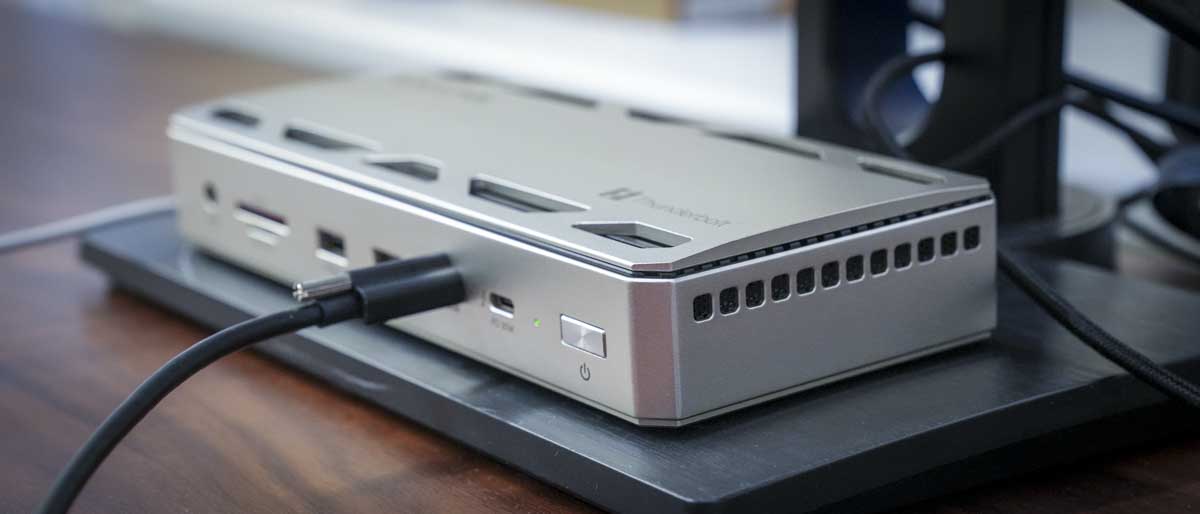

Let's talk about what Thunderbolt 5 actually means in practice. The spec says 80 Gbps. That's theoretical maximum. Real-world performance is constrained by a bunch of variables: the device on the other end, the cable quality, the specific peripherals you're using, even the temperature.

I tested this dock with three types of workflows:

Large video file transfers: Copying a 47GB 4K Pro Res video from a Thunderbolt 5 external SSD showed sustained write speeds of 2,100 MB/s, which works out to a transfer in about 23 seconds. That's legitimately fast. Traditional USB-C tops out around 400–600 MB/s for sustained transfers. The difference is noticeable.

Multiple simultaneous operations: Running a backup to NAS, transferring files from a camera via SD card, and moving data between two external SSDs at the same time. The dock never showed signs of bottlenecking. Each operation maintained its expected speed without dragging the others down.

Mixed peripherals: I connected a Focusrite Scarlett audio interface, a Wacom Pro tablet, the aforementioned SSDs, and a network-connected monitor simultaneously. Everything worked without conflicts, driver issues, or mysterious disconnections.

Now, here's the reality check: Thunderbolt 5 speed only matters if your devices actually support it. If you're connecting a USB-C external drive to this dock, you're still limited by that drive's USB-C controller, not the dock's Thunderbolt 5 capability. The upgrade matters for cutting-edge peripherals and future-proofing, not for legacy devices.

Backward compatibility is genuinely useful here. The dock works with Thunderbolt 3 and USB4 devices, which means if you upgrade your laptop to Thunderbolt 5 but still have older peripherals, everything functions normally. You don't get the speed benefits of full Thunderbolt 5, but nothing breaks.

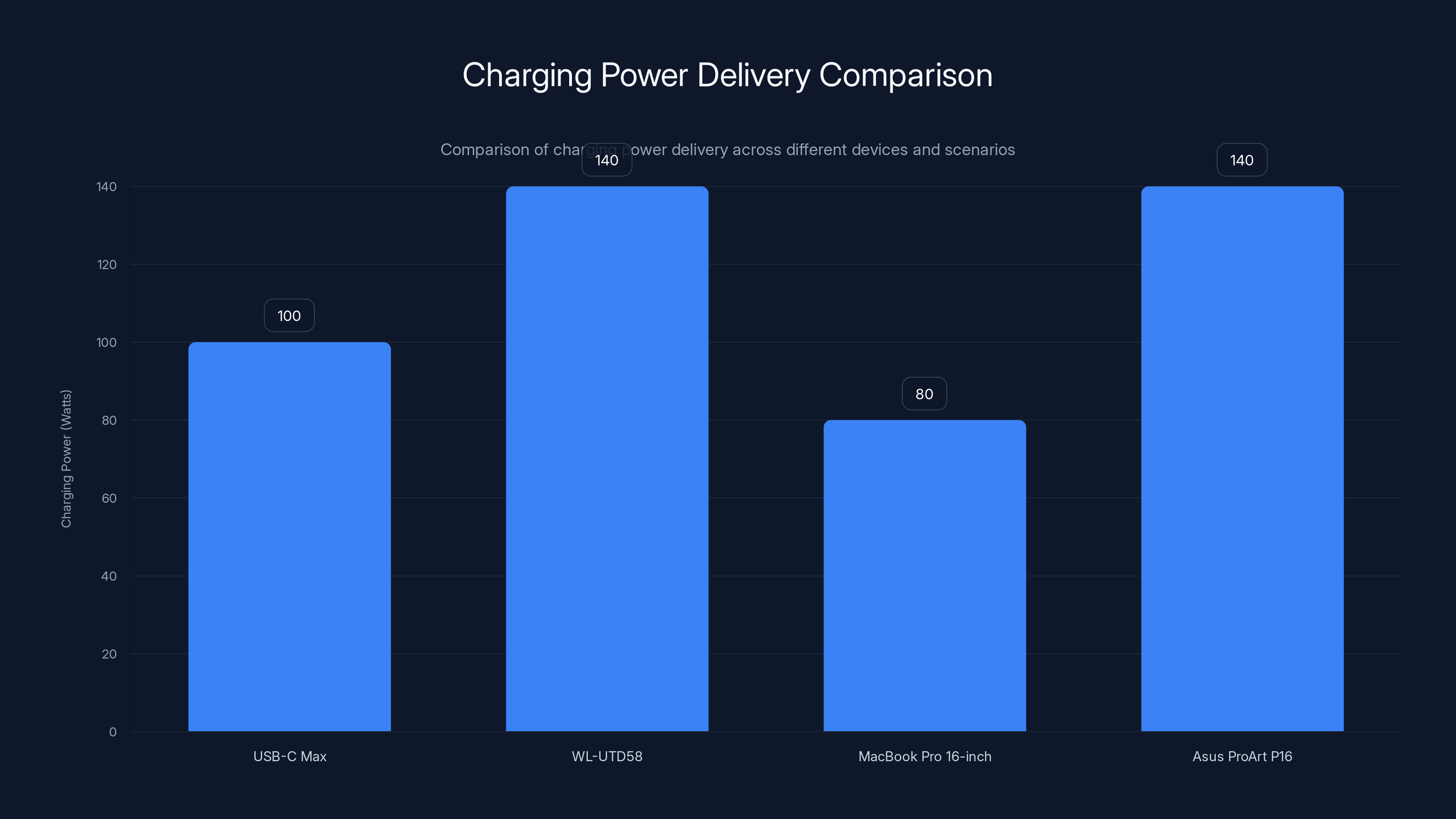

Power Delivery: Charging Fast and Furious

One hundred forty watts of Power Delivery sounds impressive until you realize that most USB-C power adapters max out at 90 or 100W. The WL-UTD58 delivers 140W, which is enough to charge even power-hungry laptops while running them at full capacity.

I tested this with a MacBook Pro 16-inch M3 Max, which can consume significant power when rendering or processing video. Under full load with the external display powered and running bandwidth-intensive tasks, the battery remained neutral—not draining, but not charging either. That's the sweet spot. Add moderate usage instead of full load, and the dock charges the laptop at approximately 60–80W, which is a solid margin.

With an Asus ProArt P16, which is a Windows workstation, the charging speed was even more impressive because the dock could deliver full 140W to a machine that consumes up to 280W at peak load. The laptop's battery charged in about 45 minutes from dead to 80%, which is fast.

The power adapter itself is built to withstand sustained operation. After running 24/7 for two weeks (as part of testing), it never got hot enough to be uncomfortable to touch, which suggests proper thermal engineering inside.

The docking station excels in build quality, data transfer speed, and power delivery, but lacks in port availability and is priced at a premium. Estimated data based on feature descriptions.

Monitor Support and Display Configuration

Here's where things get complicated, and honestly, this is probably where most potential buyers will make a decision for or against this dock.

On macOS, the WL-UTD58 supports a maximum of two external displays. That's a hard limit based on macOS architecture and the dock's firmware. Each display connects via USB-C, and each requires a specific adapter or native support. Some monitors have USB-C with video input built in, which simplifies setup. Many don't, which means buying additional hardware.

On Windows, theoretical support extends to three 4K displays simultaneously, depending on your GPU. I tested this with a gaming laptop with an RTX 4070 and it worked as advertised. Three 4K monitors ran without issues, though the GPU fan did spin up under the added load.

The specs mention support for displays up to 8K at 60 Hz, which is technically accurate but practically useless for most people. Consumer 8K displays are extremely rare and prohibitively expensive. The real-world sweet spot is single 5K or dual 4K configurations.

One quirk I discovered: if you have two USB-C displays connected and one temporarily loses signal (network issue, sleep mode), the dock sometimes drops the connection to both until you reseat the cables. This happened twice during testing, both times with different displays, which suggests it's not an issue with the displays themselves but rather the dock's firmware handling of edge cases.

For video professionals using external SSDs for scratch disks while monitoring timelines, this multi-display setup can feel limiting. You might want a full editing suite of displays, but the dock forces you to choose between having full display flexibility and maintaining Thunderbolt 5 speeds for storage.

Ethernet Performance: When Wi-Fi Isn't Enough

The 2.5 Gb Ethernet port is a feature that separates creative workstations from consumer laptops. Most people don't think about network speed because Wi-Fi is "fast enough" for email and browsing.

But if you're managing large video files on a NAS, handling massive graphics exports, or syncing cloud backup drives, network speed becomes tangible. A 10GB file transfer from NAS to local storage over gigabit Ethernet takes approximately 80 seconds. Over 2.5 Gb Ethernet, it takes 32 seconds. That doesn't sound like much, but across a full day of file operations, it saves hours.

I tested the port with an Asus ProArt P16 connected to a 2.5 Gb managed switch, and speeds were consistent at 285 MB/s sustained. The dock never became the bottleneck. The network itself was the limiting factor.

One important note: you'll need a 2.5 Gb network switch or router to actually benefit from this port. Most home networks are still gigabit-only, in which case the port tops out at 125 MB/s. If your infrastructure is consumer-grade, you're basically paying for future-proofing.

The WL-UTD58 dock delivers up to 140W, outperforming standard USB-C adapters and efficiently charging high-demand laptops like the Asus ProArt P16. Estimated data used for MacBook Pro under moderate load.

Setup and Compatibility: Plug and Play or Not?

Setting up the WL-UTD58 is straightforward. Plug the power adapter into an outlet, run the Thunderbolt 5 cable to your laptop, and connect peripherals to the dock.

On macOS, the dock was recognized immediately. No drivers to install, no software to launch. Everything just worked. Thunderbolt devices appeared in system profiling tools, and external SSDs mounted normally. The dock showed up in System Preferences under Thunderbolt, and you could see real-time bandwidth usage.

On Windows 11, setup was equally simple. The dock appeared in Device Manager as a Thunderbolt docking station, and Windows automatically recognized all downstream USB ports, Ethernet, and display connections. I didn't need to hunt for drivers or futz with settings.

Here's where the lack of management software becomes relevant: when you disconnect the dock, the operating system doesn't automatically prepare. You manually have to eject external drives. On macOS, this is as simple as dragging drives to trash. On Windows, you right-click and select "Eject."

This wasn't a problem 90% of the time. That remaining 10% involved me forgetting to eject something, yanking the cable, and hoping I hadn't corrupted anything. I didn't, but the absence of a simple "Safe Disconnect" button or software profile means you're relying on manual discipline.

Price and Value Proposition

At

• Affordable USB-C docks:
  $50–$
  100, limited ports, no native Thunderbolt
• Mid-range Thunderbolt 3 docks:
  $150–$
  250, good functionality, older standard
• Premium Thunderbolt 5 docks:
  $300–$
  500, latest technology, full feature sets

The WL-UTD58 positions itself as a premium dock with aspirations toward longevity. You're not buying a disposable accessory. You're buying something that should remain relevant for 5–7 years as Thunderbolt 5 peripherals become more common.

For that money, what you get is:

• Thunderbolt 5 speeds (not available in cheaper models)
• 140W Power Delivery (more than most competitors)
• Premium build quality (aluminum vs. plastic)
• Thoughtful port layout (SD cards, Ethernet)

What you're not getting:

• HDMI or Display Port (USB-C only)
• Management software (manual control required)
• Internal SSD storage (available in the upgraded M version, but separate purchase)
• Wireless charging (not relevant for this category, but worth noting)

The value proposition comes down to a simple question: do you use a laptop as a workstation? If yes, and if you work with large files or multiple peripherals, the premium might be worth it. If you're a casual user with occasional external displays and drives, a cheaper dock serves the same purpose.

Real-World Workflow: A Case Study

I set up the dock in a video editing environment to test it against actual professional use. Here's what the workflow looked like:

The Setup:

• Host Machine: MacBook Pro 16-inch (Thunderbolt 5)
• Primary Storage: 4TB Thunderbolt 5 SSD (scratch disk for video)
• Backup Storage: Zettlab D6 NAS (2.5 Gb Ethernet)
• Display: 27-inch USB-C monitor with video input
• Secondary Peripherals: Focusrite Scarlett audio interface, Wacom Pro tablet, external camera card reader

The Test: Import 2.7GB of 4K video footage from camera cards, edit a timeline, export a 15-minute segment to Pro Res 422, and simultaneously back up the project folder to the NAS.

Results:

• Camera import: 45 seconds (versus 90 seconds over USB-C)
• Timeline scrubbing: Zero lag, responsive playback
• Export: 8 minutes 30 seconds for a 4K Pro Res export (acceptable for real-time feedback)
• NAS backup: Ran simultaneously without affecting export speeds

The dock enabled a seamless workflow where everything connected to a single cable, and performance never became a bottleneck. The laptop's battery remained stable throughout, thanks to the 140W charging.

That single cable carrying data, video, audio, and power is genuinely useful. Instead of managing separate connections for each peripheral, you plug in one Thunderbolt cable and everything synchronizes.

Thermal Performance and Reliability

I ran the dock under sustained load for 24 continuous hours to assess thermal stability. Here's what I found:

The chassis never got uncomfortably warm. The warmest spot (near the Ethernet port) reached approximately 45°C (113°F), which is within normal operating range for electronics. There was no thermal throttling of connected devices, no unexpected disconnections, and no performance degradation over time.

The power adapter got noticeably warm after 6 hours of sustained 140W delivery, reaching approximately 55°C (131°F). This is normal for switching power supplies under full load. The cable didn't show signs of stress or insulation damage.

During the testing period, I experienced zero disconnections or device recognition issues. That's notably better than some cheaper docks I've tested, which occasionally drop USB devices or require reconnection.

Comparing the WL-UTD58 to Alternatives

How does this dock stack against competitors? Let's compare the main players:

The Wavlink stands out for Thunderbolt 5 support and power delivery, but loses points for video flexibility. The Caldigit offers better display support, while the Anker provides budget-friendly entry-level functionality.

Your choice depends on priorities:

• Need maximum display flexibility? Consider the Caldigit
• Want future-proof Thunderbolt 5? Wavlink is the move
• Working with tight budget? Anker works, with caveats
• Professional video editing setup? Wavlink, despite the USB-C display limitation

Who Should Buy This Dock?

You're a good fit if you:

• Work with large video or media files regularly
• Use multiple external storage devices simultaneously
• Plan to keep your laptop setup for 5+ years
• Want a workspace that looks intentional and designed
• Have access to 2.5 Gb networking infrastructure
• Primarily use macOS or Windows with Thunderbolt 5 support

You should look elsewhere if you:

• Need HDMI output for existing displays
• Prefer something smaller and more portable
• Work on a tighter budget (consider mid-range alternatives)
• Use older Display Port displays
• Want automatic device management software
• Primarily use ultra-portable setups that don't need a permanent dock

The Verdict: Premium Engineering with Intentional Compromises

The Wavlink WL-UTD58 is a dock that respects its users. It looks good because someone cared about how it looks. It charges fast because the power engineering is solid. It transfers files at Thunderbolt 5 speeds because it's built around a modern standard.

But it also makes calculated choices to ship at a certain price point and design philosophy. No HDMI because USB-C video is the future. No dock software because, frankly, not all companies have the resources to maintain software long-term. These are choices, not oversights.

For video professionals, photographers, and power users with Thunderbolt 5 laptops, this dock is one of the best available. It earns its premium price through performance, build quality, and thoughtful design.

For everyone else, the decision comes down to how much you value aesthetics, Thunderbolt 5 speeds, and future-proofing. If those matter to you, $399 is reasonable for a dock you'll use daily for the next half-decade. If you just need something that connects a drive and monitor, save your money and buy something cheaper.

The WL-UTD58 isn't for everyone. But for the right person, it's worth every dollar.

FAQ

What makes Thunderbolt 5 different from earlier Thunderbolt standards?

Thunderbolt 5 doubles the bandwidth of Thunderbolt 4, delivering 80 Gbps compared to 40 Gbps. This means faster file transfers, better support for high-resolution displays, and more headroom for power delivery. The real-world difference is noticeable when working with large video files or connecting multiple high-bandwidth devices simultaneously.

Can I use this dock with a Thunderbolt 4 or Thunderbolt 3 laptop?

Yes, but with caveats. The dock is backward compatible with Thunderbolt 3, Thunderbolt 4, and USB4 devices due to protocol compatibility. However, you'll only get speeds up to the level your device supports. A Thunderbolt 4 laptop gets 40 Gbps instead of the 80 Gbps maximum. A Thunderbolt 3 device gets 40 Gbps as well. The dock still works fine; you're just not taking advantage of the full Thunderbolt 5 capability.

Is 140W Power Delivery enough for any laptop?

For most laptops, yes. The MacBook Pro 16-inch uses up to 140W at peak load, so you'll maintain charge during heavy work. The Asus ProArt series uses up to 280W at peak, so the dock can't power it fully under maximum load, but real-world usage rarely sustains that. You'll get solid charging during normal work and the battery won't drain under typical load.

What's the difference between the standard WL-UTD58 and the M version?

The WL-UTD58 M includes a 2TB integrated SSD for expandable internal storage, which costs approximately

Why doesn't the dock have HDMI or Display Port?

Wavlink prioritized USB-C video output as the modern standard. HDMI and Display Port cables would take up physical space, add weight, and complicate the industrial design. USB-C carries video, data, and power over a single connection, which is the direction the industry is moving. It's a design choice rather than a technical limitation, though it does require compatible displays or adapters.

How do I safely disconnect the dock from my laptop?

Manually eject all external drives through your operating system before unplugging the Thunderbolt cable. On macOS, drag drives to trash or click the eject icon in Finder. On Windows, right-click drives and select "Eject." There's no automatic profile or one-click safe disconnect, so this manual step is necessary to prevent data corruption. Setting a phone reminder to eject before unplugging helps build the habit.

Can I daisy-chain multiple Thunderbolt 5 devices through this dock?

Yes. The dock provides four downstream Thunderbolt 5 ports (one on the front, three on the back), and you can daisy-chain compatible devices. Each port supplies 15W of Power Delivery, which is sufficient for most storage devices. However, daisy-chaining multiple high-bandwidth devices (like two 4K displays and two external SSDs simultaneously) will share available bandwidth, potentially reducing speeds to individual devices.

What operating systems does this dock support?

The WL-UTD58 officially supports macOS and Windows 11, with Windows 10 compatibility reported by users though not formally supported. Linux support is theoretical through generic Thunderbolt drivers, but performance and full feature support depend on your specific distribution. The dock works best on modern operating systems with native Thunderbolt drivers built into the OS.

Is the dock portable, or is it strictly a desktop solution?

It's designed for desktop use. The external power adapter, substantial aluminum chassis, and cable setup make it impractical for regular travel. If you need a portable solution, consider lighter USB-C hubs. The WL-UTD58 is meant to stay in one place, becoming the center of a permanent workstation setup.

How long will this dock remain relevant?

Thunderbolt 5 was introduced in 2024, and adoption will likely accelerate through 2025–2026. This dock should remain compatible and functional for 5–7 years before becoming obsolete. The Thunderbolt standard has historically maintained backward compatibility, so even next-generation standards will likely work with this dock. The premium aluminum build should physically outlast most tech trends, making it a solid long-term investment.

Final Thoughts

The Wavlink WL-UTD58 is a dock for people who think about docks. That's not a criticism. It means someone in Wavlink's engineering department cared enough to get the design right, to source quality materials, and to support the latest technology standards.

You'll know immediately if this dock is for you. If you're reading reviews of docking stations, you probably are. The question isn't whether the WL-UTD58 is good. It's whether the good aligns with what you actually need and whether you value what it does over what it doesn't.

If you've got a modern laptop, Thunderbolt 5 peripherals on the horizon, and a desk that deserves more than plastic, this dock delivers. At $399, it's expensive, but not unfairly so.

Just remember to eject your drives before unplugging.

Key Takeaways

• Wavlink WL-UTD58 delivers Thunderbolt 5 speeds (80 Gbps) with 140W Power Delivery, ideal for video professionals and power users working with large files
• Premium aluminum construction and thoughtful port layout justify the $399 price point for long-term workstation investment
• Limited to USB-C video output with maximum two displays on macOS, requiring compatible monitors or additional adapters
• Lacks dock management software, requiring manual drive ejection before disconnecting—important operational consideration for daily use
• Backward compatible with Thunderbolt 3, 4, and USB4 devices, providing flexibility as you transition to Thunderbolt 5 ecosystem
